Product CatalogPart Number
0302CS-62NXJRW
Manufacturer
CoilcraftDescription
FIXED IND 62NH 240MA 1.28OHM SM
Datasheet
DatasheetPackage
0302 (0805 Metric)
In Stock
63,553 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0302CS-62NXJRW
0302CS-62NXJRW

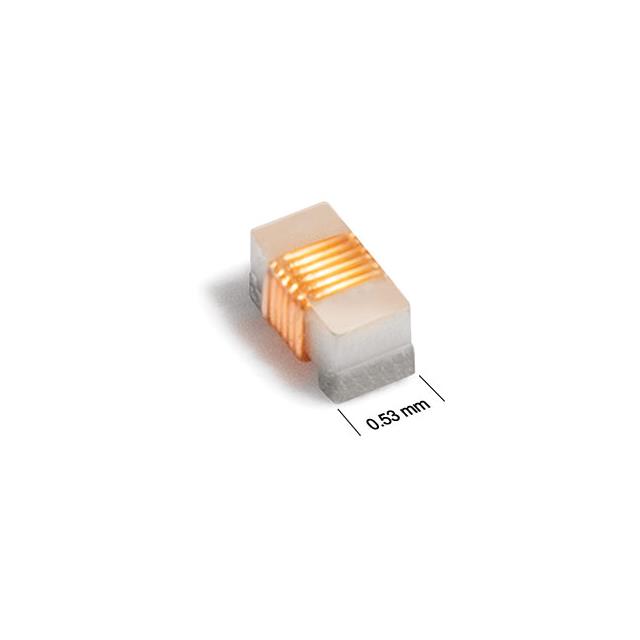

lmages are for reference only.Payment Methods
Delivery Services
62 nH Unshielded Inductor 240 mA 1.28Ohm Max 0302 (0805 Metric)
Quick Inquiry
0302CS-62NXJRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0302CS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | - |
| Material - Core | Ceramic |
| Inductance | 62 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 240 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.28Ohm Max |
| Q @ Freq | 43 @ 900MHz |
| Frequency - Self Resonant | 2.87GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0302 (0805 Metric) |
| Supplier Device Package | 0302 |
| Size / Dimension | 0.034" L x 0.021" W (0.86mm x 0.53mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0302CS-6N0XJRW | 0302CS-6N3XJRW | 0302CS-6N5XJRW | 0302CS-101XJRW |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ||||
| Description | FIXED IND 6NH 700MA 140MOHM SM | FIXED IND 6.3NH 620MA 155MOHM SM | FIXED IND 6.5NH 620MA 200MOHM SM | FIXED IND 100NH 140MA 3.26OHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
