Product CatalogPart Number
030AT2502SMLF
Manufacturer
Gowanda ElectronicsDescription
WIREWOUND TOROIDAL INDUCTOR
Datasheet
DatasheetPackage
Nonstandard
In Stock
60,951 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
030AT2502SMLF
030AT2502SMLF
lmages are for reference only.Payment Methods
Delivery Services
25 µH Shielded Toroidal Inductor 2.16 A 70mOhm Max Nonstandard
Quick Inquiry
030AT2502SMLF
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Gowanda Electronics |
| Series | ATSM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 25 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.16 A |
| Current - Saturation (Isat) | 2.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 70mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 25MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.440" L x 0.435" W (11.18mm x 11.05mm) |
| Height - Seated (Max) | 0.360" (9.14mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
|
|
 |
| Part Number | 030AT2502SM | 030AT2502SMLF | 030AT2503SM | 030AT2503SMLF |
| Manufacturer | Gowanda Electronics | Gowanda Electronics | Gowanda Electronics | Gowanda Electronics |
| RoHS Status | Not applicable | ROHS3 Compliant | Not applicable | ROHS3 Compliant |
| Description | WIREWOUND TOROIDAL INDUCTOR | WIREWOUND TOROIDAL INDUCTOR | WIREWOUND TOROIDAL INDUCTOR | WIREWOUND TOROIDAL INDUCTOR |
| Series | Gowanda Electronics | Gowanda Electronics | Gowanda Electronics | Gowanda Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

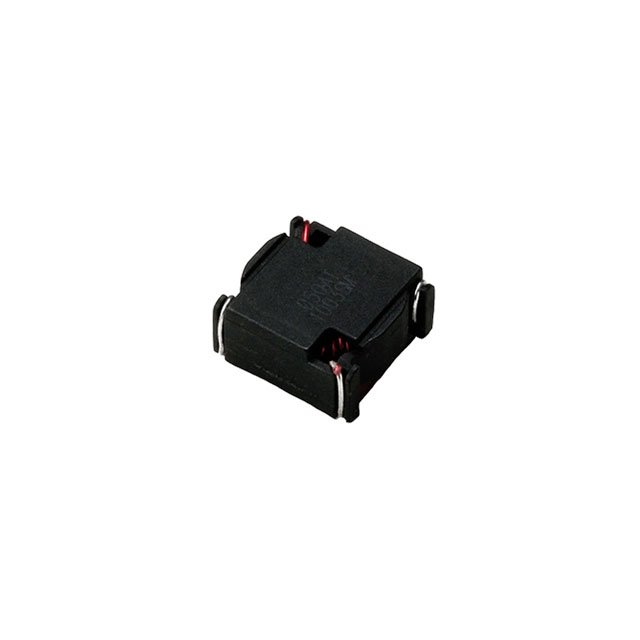

030AT1002SM
