03540536Z
lmages are for reference only.03540536Z
RELAY HSG 5POS WIRING HARNESS
Datasheet-
54,192 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Relay Housing Wiring Harness
03540536Z
| Category | Relays - Relay Sockets - |
| Manufacturer | Littelfuse/Commercial Vehicle Products |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Housing |
| Number of Positions | 5 |
| Mounting Type | Wiring Harness |
| Termination Style | Quick Connect Terminals (Not Provided) |
| For Use With/Related Products | ISO Relays |
| Features | For 2 Relays |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

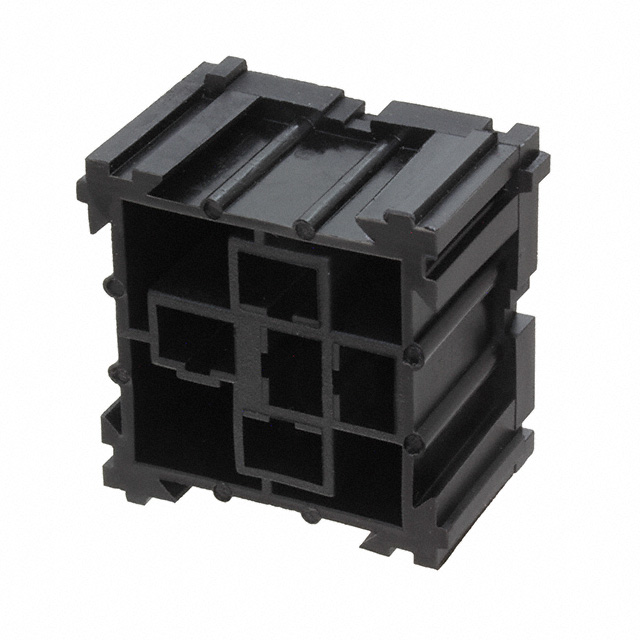

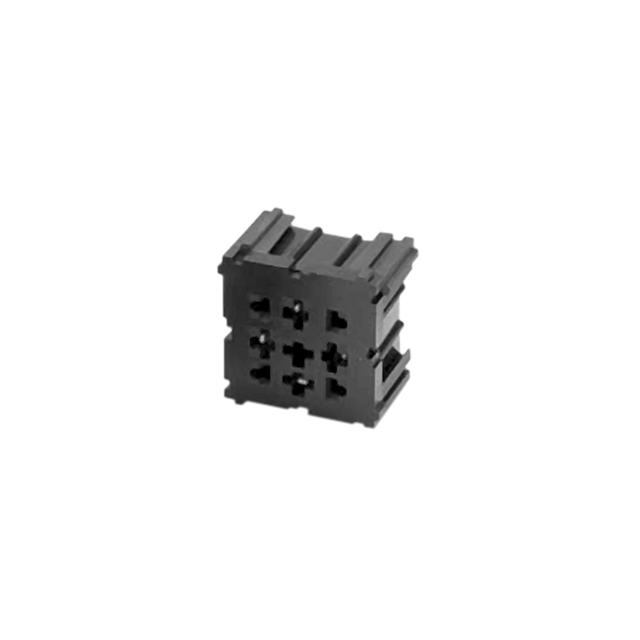

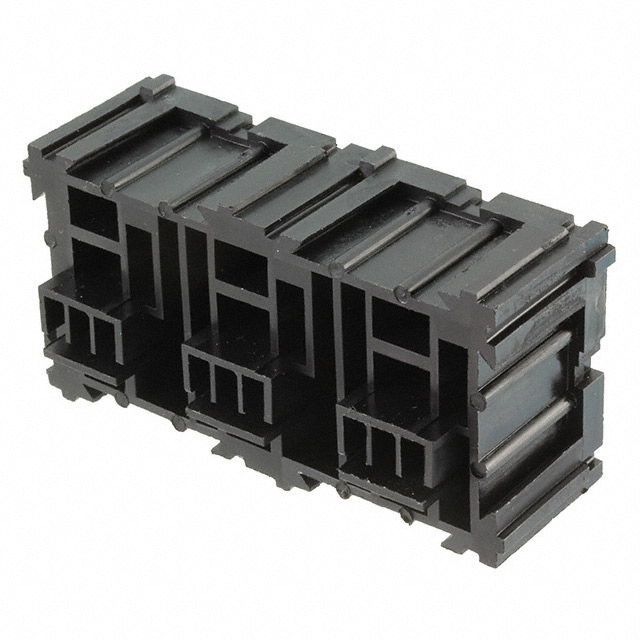

| Part Number | 03540506Z | 03540507Z | 03540535Z | 03540542Z |
| Manufacturer | Littelfuse/Commercial Vehicle Products | Littelfuse/Commercial Vehicle Products | Littelfuse/Commercial Vehicle Products | Littelfuse/Commercial Vehicle Products |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY HSG 5 POS WIRING HARNESS | RELAY HSG 5POS WIRING HARNESS | RELAY HSG 4POS WIRING HARNESS | RELAY HSG 9POS WIRING HARNESS |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
