Product CatalogPart Number
0402CS-9N5XGRW
Manufacturer
CoilcraftDescription
FIXED IND 9.5NH 480MA 200MOHM SM
Datasheet
DatasheetPackage
0402 (1005 Metric)
In Stock
51,396 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0402CS-9N5XGRW
0402CS-9N5XGRW

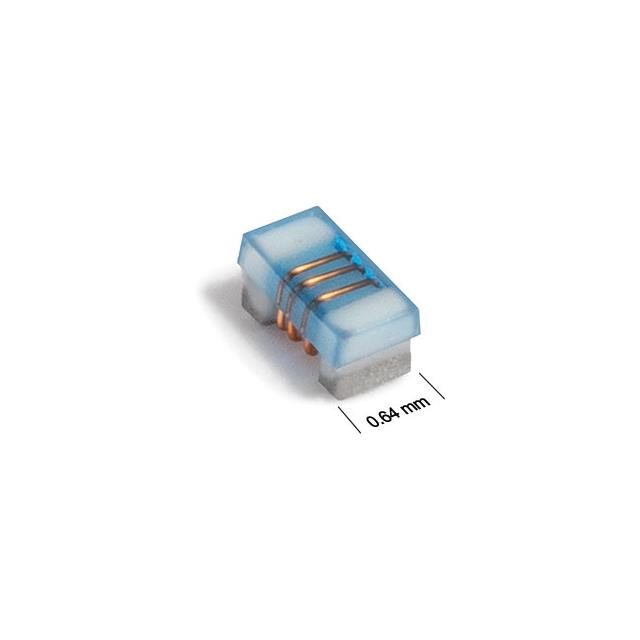

lmages are for reference only.Payment Methods
Delivery Services
9.5 nH Unshielded Wirewound Inductor 480 mA 200mOhm Max 0402 (1005 Metric)
Quick Inquiry
0402CS-9N5XGRW
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0402CS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 9.5 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 480 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 54 @ 900MHz |
| Frequency - Self Resonant | 4GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.047" L x 0.025" W (1.19mm x 0.64mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0402CS-9N0XGRW | 0402CS-9N0XJRW | 0402CS-9N5XJRW | 0402-10NK |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Delevan |
| RoHS Status | RoHS non-compliant | |||
| Description | FIXED IND 9NH 680MA 100MOHM SM | FIXED IND 9NH 680MA 100MOHM SM | FIXED IND 9.5NH 480MA 200MOHM SM | FIXED IND 10NH 680MA 195MOHM SMD |
| Series | Coilcraft | Coilcraft | Coilcraft | Delevan |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
