0456030.ER
lmages are for reference only.0456030.ER
FUSE BRD MT 30A 125VAC 72VDC SMD
Datasheet2-SMD, Square End Block
21,052 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30 A 125 V AC 72 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
0456030.ER
| Category | Circuit Protection - Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | NANO²® 456 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 30 A |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 72 V |
| Response Time | Fast Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 100A AC, 500A DC |
| Melting I²t | 81.0 |
| Approval Agency | cULus, PSE |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.00132 Ohms |
| Product Attribute |  |
 |
 |
 |

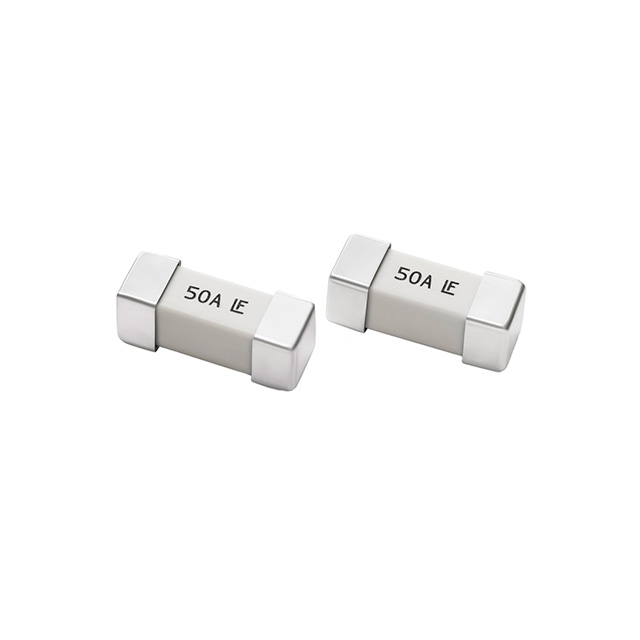

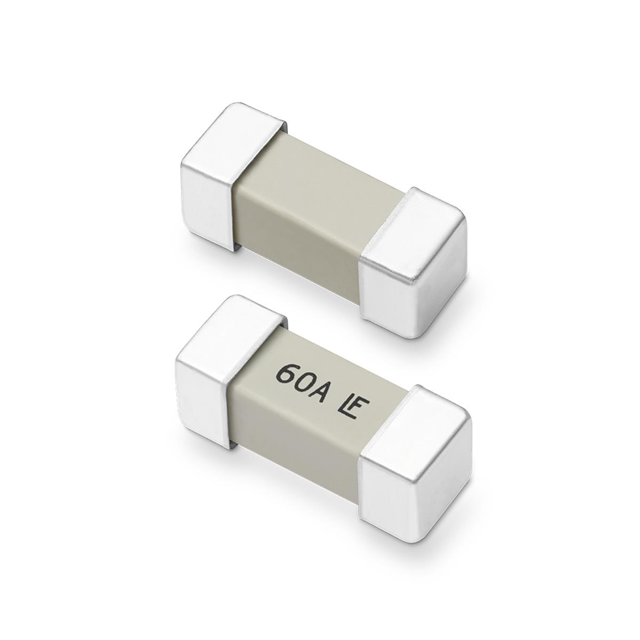

| Part Number | 0456040.DRSD | 0456040.DRSDE | 0456050.DRSD | 0456050.DRSDE |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BRD MT 40A 125VAC 75VDC SMD | FUSE BRD MT 40A 250VAC 80VDC SMD | FUSE BRD MT 50A 125VAC 75VDC SMD | FUSE BRD MT 50A 250VAC 80VDC SMD |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
