Product CatalogPart Number
0528082271
Manufacturer
MolexDescription
CONN FFC FPC VERT 22POS 1MM SMD
Datasheet
DatasheetPackage
-
In Stock
51,446 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0528082271
0528082271
lmages are for reference only.Payment Methods
Delivery Services
22 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Quick Inquiry
0528082271
Specifications
| Category | Connectors, Interconnects - FFC-FPC Flat Flexible Connectors - FFC-FPC Flat Flexible Connector Assemblies |
| Manufacturer | Molex |
| Series | Easy-On 52808 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 22 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.199" (5.05mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin Bismuth |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 125V |
| Operating Temperature | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | - |
| Actuator Color | - |
| Mating Cycles | 10 |
| Base Product Number | 052808 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

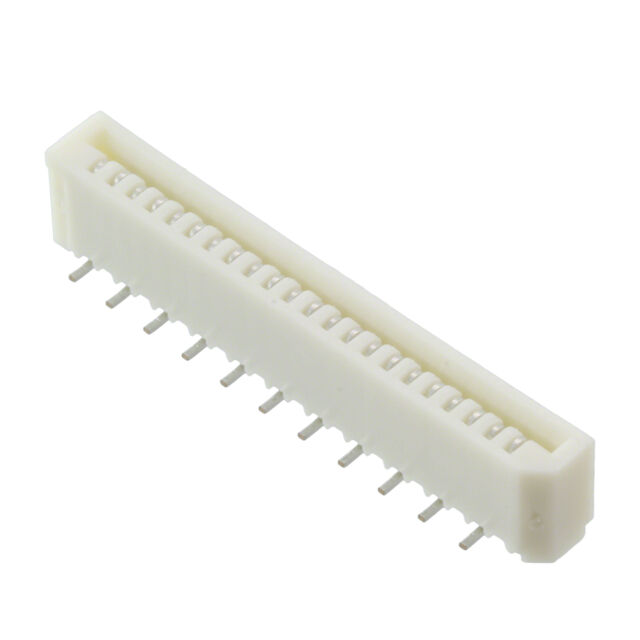

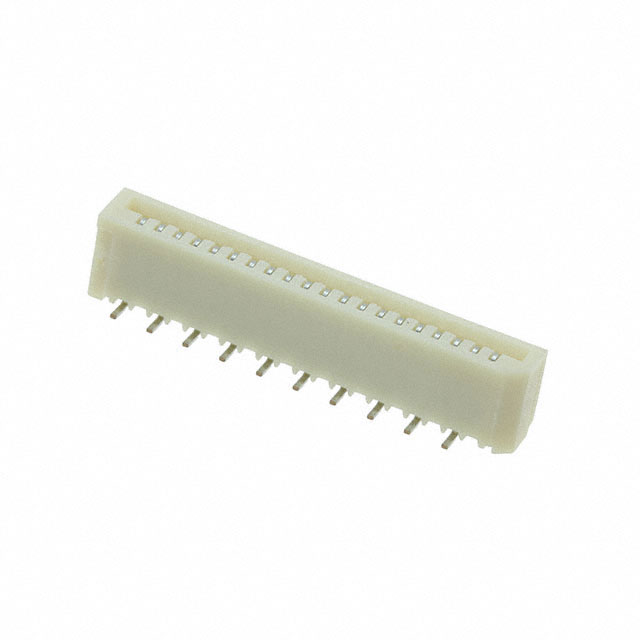

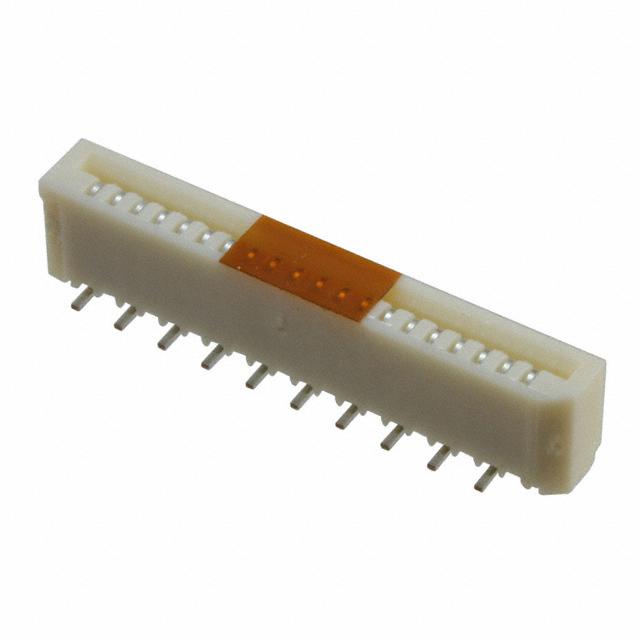

| Part Number | 0528082270 | 0528082070 | 0528082071 | 0528082072 |
| Manufacturer | Molex | Molex | Molex | Molex |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | CONN FPC VERT 22POS 1MM SMD | CONN FPC VERT 20POS 1MM SMD | CONN FFC FPC VERT 20POS 1MM SMD | 1.0 FFC NON ZIF SMTHSGASSY20CKTE |
| Series | Easy-On 52808 | Easy-On 52808 | Easy-On 52808 | Easy-On 52808 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
