0630CDMCCDS-1R0MC
lmages are for reference only.0630CDMCCDS-1R0MC
FIXED IND 1UH 14.4A 7.4MOHM SMD
DatasheetNonstandard
54,162 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Molded Inductor 14.4 A 7.4mOhm Max Nonstandard
0630CDMCCDS-1R0MC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | 0630CDMC/DS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 14.4 A |
| Current - Saturation (Isat) | 16.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 7.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.276" L x 0.260" W (7.00mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |
| Part Number | 0630CDMCCDS-1R0MC | 0630CDMCCDS-1R0MC | 0630CDMCCDS-1R5MC | 0630CDMCCDS-100MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

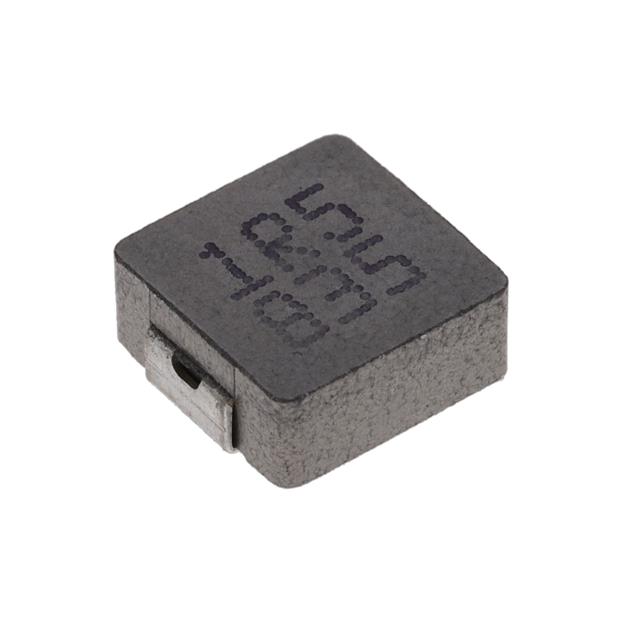

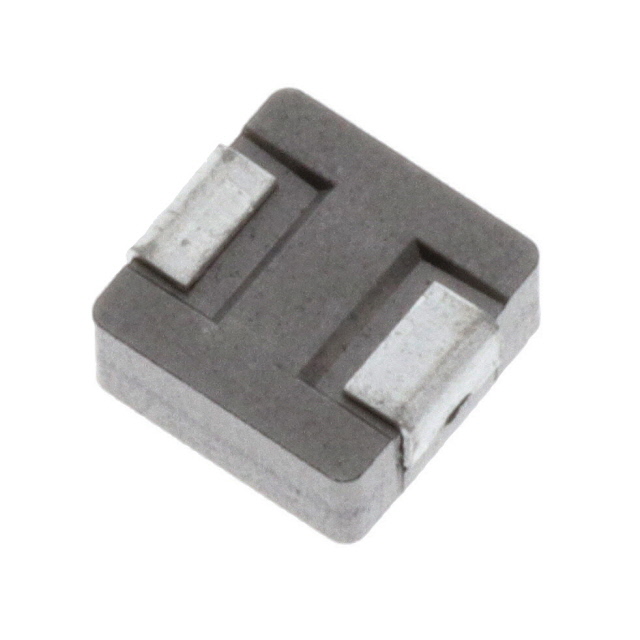

| Description | FIXED IND 1UH 14.4A 7.4MOHM SMD | FIXED IND 1UH 14.4A 7.4MOHM SMD | FIXED IND 1.5UH 10.2A 12.1 MOHM | FIXED IND 10UH 4A 67 MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
