Product CatalogPart Number
0805LS-332XGRC
Manufacturer
CoilcraftDescription
RF INDUCTOR, FERRITE CORE, 2% TO
Datasheet
DatasheetPackage
0805 (2012 Metric)
In Stock
19,661 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
0805LS-332XGRC
0805LS-332XGRC

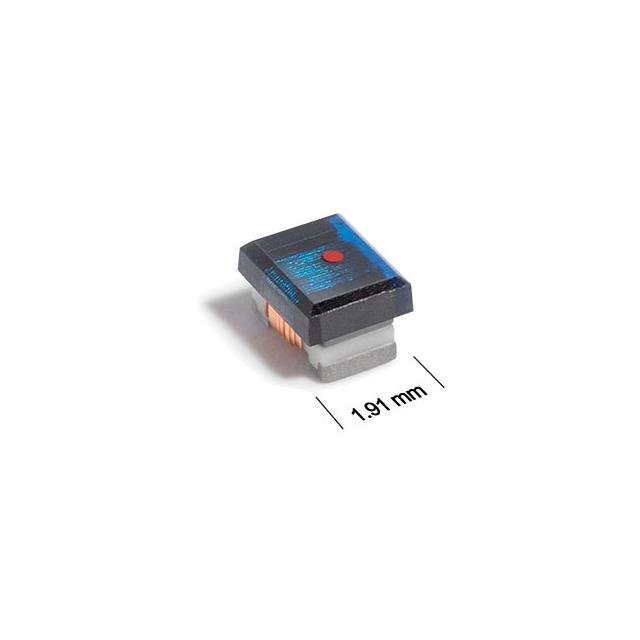

lmages are for reference only.Payment Methods
Delivery Services
3.3 µH Unshielded Wirewound Inductor 330 mA 1.57Ohm Max 0805 (2012 Metric)
Quick Inquiry
0805LS-332XGRC
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | 0805LS |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic, Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±2% |
| Current Rating (Amps) | 330 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.57Ohm Max |
| Q @ Freq | 20 @ 7.9MHz |
| Frequency - Self Resonant | 83MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.090" L x 0.075" W (2.29mm x 1.91mm) |
| Height - Seated (Max) | 0.063" (1.60mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 0805LS-332XJRC | 0805LS-392XGRC | 0805LS-392XJRC | 0805-101J |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Delevan |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RF INDUCTOR, FERRITE CORE, 5% TO | RF INDUCTOR, FERRITE CORE, 2% TO | RF INDUCTOR, FERRITE CORE, 5% TO | FIXED IND 100NH 400MA 460MOHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Delevan |
| Packaging | Strip | Strip | Strip | Tape & Reel (TR) |
