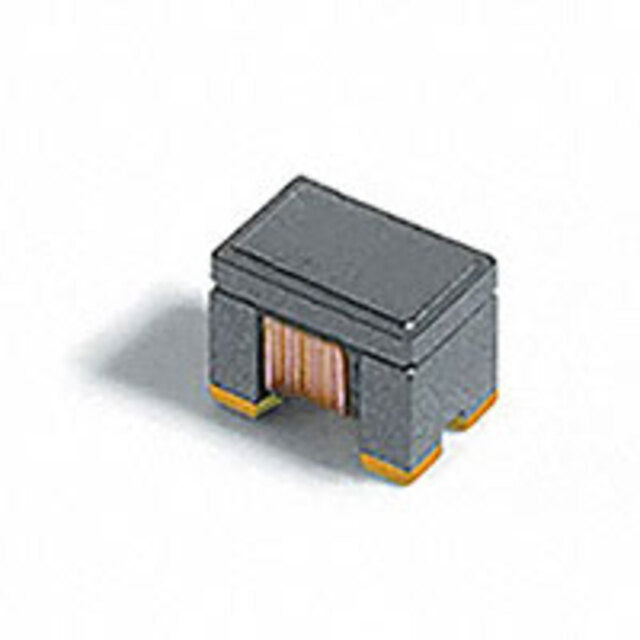

322 nH @ 100 MHz 2 Line Common Mode Choke Surface Mount 1.75 kOhms @ 930 MHz 500mA DCR 450mOhm
0805USB-672MLC
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Coilcraft |
| Series | 0805USB |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 322 nH @ 100 MHz |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 450mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height (Max) | 0.065" (1.65mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 1.75 kOhms @ 930 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0805USB-172MLC | 0805USB-262MLC | 0805USB-372MLC | 0805USB-421MLC |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 84NH 500MA 2LN 640 OHM SMD | CMC 147NH 500MA 2LN 820 OHM SMD | CMC 189NH 500MA 2LN 1.06KOHM SMD | CMC 23NH 500MA 2LN 220 OHM SMD |
| Series | 0805USB | 0805USB | 0805USB | 0805USB |
| Packaging | Strip | Strip | Strip | Strip |
