0869LP14A0090001T
lmages are for reference only.0869LP14A0090001T
RF FILTER LOW PASS 869MHZ 0603
Datasheet0603 (1608 Metric), 6 PC Pad
58,245 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
869MHz Center Frequency Low Pass RF Filter (Radio Frequency) 91MHz Bandwidth 0.6dB 0603 (1608 Metric), 6 PC Pad
0869LP14A0090001T
| Category | Filters - RF Filters - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Frequency | 869MHz Center |
| Bandwidth | 91MHz |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 0.6dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height (Max) | 0.028" (0.70mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

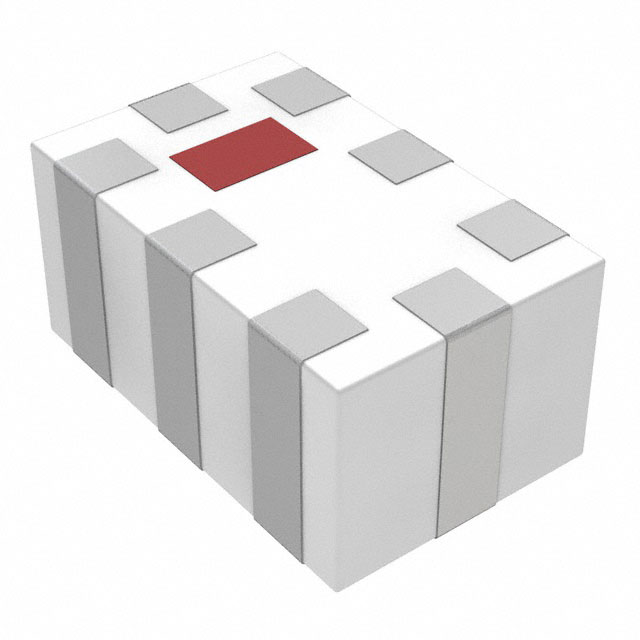

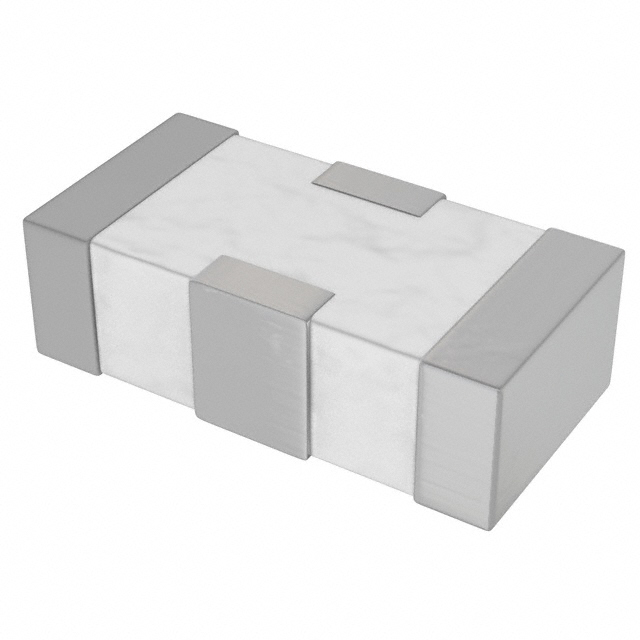

| Part Number | 0892LP07A0136001T | 0898LP18A035001E | 0868LP15A0020001E | BPF2012LRAGR2400L |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 892MHZ 0402 | RF FILTER LOW PASS 897.5MHZ 1206 | RF FILTER LOW PASS 868MHZ 0805 | 2012 2.4GHZ BPF TYPEAG |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) |
