0AKMB9600-BD
lmages are for reference only.0AKMB9600-BD
FUSE 60A 500V STUD MNT
DatasheetCylindrical, Blade Terminal (Bolt)
34,421 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
60A 500 VDC Fuse Cartridge Bolt Mount
0AKMB9600-BD
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0AKM |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 60A |
| Voltage Rating - AC | - |
| Response Time | - |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | - |
| Operating Temperature | -40°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 20kA |
| Package / Case | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 0.591" Dia x 1.559" L (15.00mm x 39.60mm) |
| Base Product Number | - |
| Voltage Rating - DC | 500 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 3960.0 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

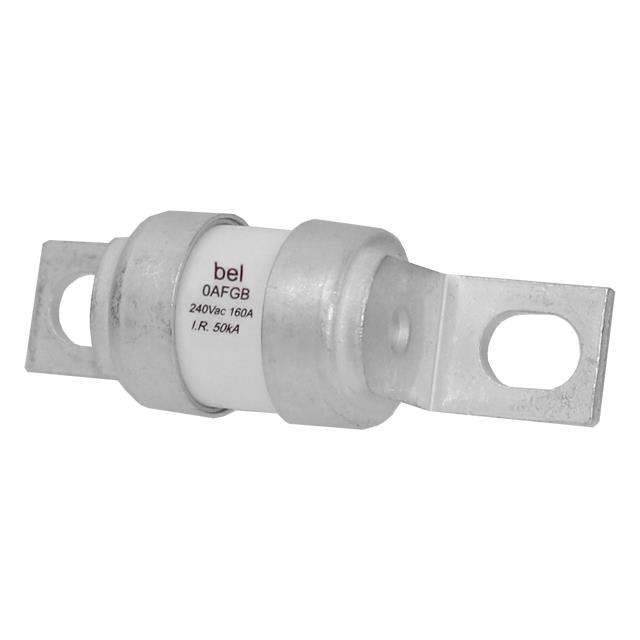

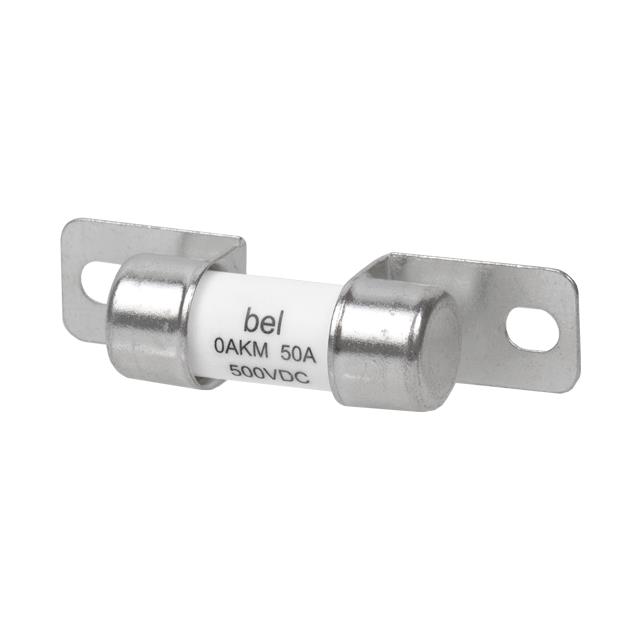

| Part Number | 0AKMB9500-BD | 0AKMB9800-BD | 0AFGB9250SBA | 0AFGB9500SBA |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | FUSE 50A 500V STUD MNT | FUSE 80A 500V STUD MNT | FUSE 25A 240V STUD MNT | FUSE 50A 240V STUD MNT |
| Series | 0AKM | 0AKM | 0AFG | 0AFG |
| Packaging | Box | Box | Box | Box |
