0ZCE0100FF2E

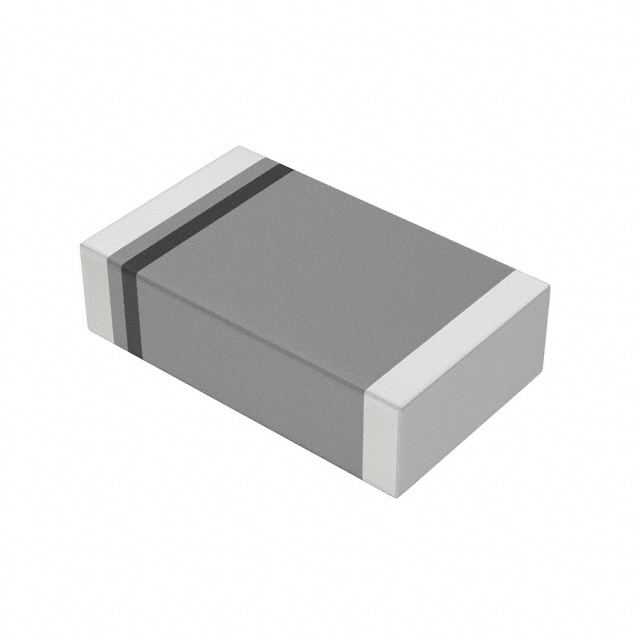

lmages are for reference only.0ZCE0100FF2E
PTC RESET FUSE 6V 1A 0805
Datasheet0805 (2012 Metric), Concave
70,755 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 6V 1 A Ih Surface Mount 0805 (2012 Metric), Concave
0ZCE0100FF2E
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ZCE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Hold (Ih) (Max) | 1 A |
| Current - Trip (It) | 1.95 A |
| Current - Max | 40 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.083" L x 0.053" W (2.10mm x 1.35mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.071" (1.80mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 300 ms |
| Resistance - Initial (Ri) (Min) | 60 mOhms |
| Resistance - Post Trip (R1) (Max) | 210 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0ZAF0005FF28 | 0ZAF0008FF28 | 0ZAF0012FF28 | 0ZAF0013FF28 |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
