0ZCF0600FF2C

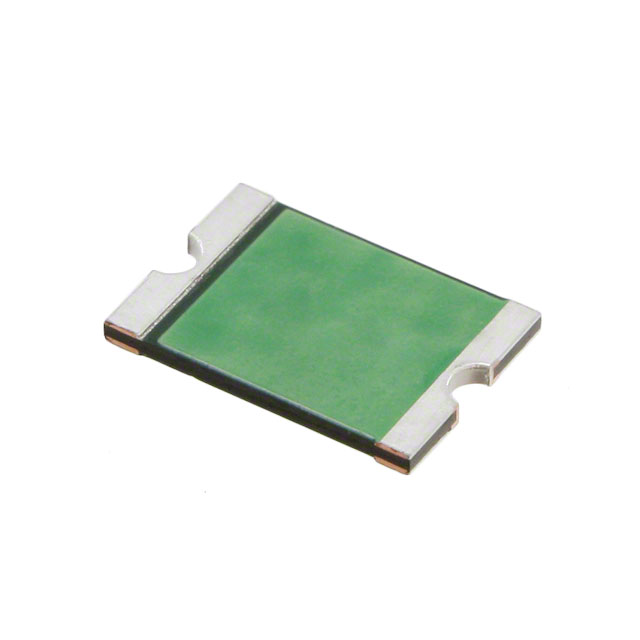

lmages are for reference only.0ZCF0600FF2C
PTC RESET FUSE 6.0A 12V SMD 2920
Datasheet2920 (7351 Metric), Concave
84,600 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 12V 6 A Ih Surface Mount 2920 (7351 Metric), Concave
0ZCF0600FF2C
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ZCF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 12V |
| Current - Hold (Ih) (Max) | 6 A |
| Current - Trip (It) | 12 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.067" (1.70mm) |
| Lead Spacing | - |
| Approval Agency | AEC-Q200, cURus, TUV, UL |
| Time to Trip | 2 s |
| Resistance - Initial (Ri) (Min) | 4 mOhms |
| Resistance - Post Trip (R1) (Max) | 20 mOhms |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

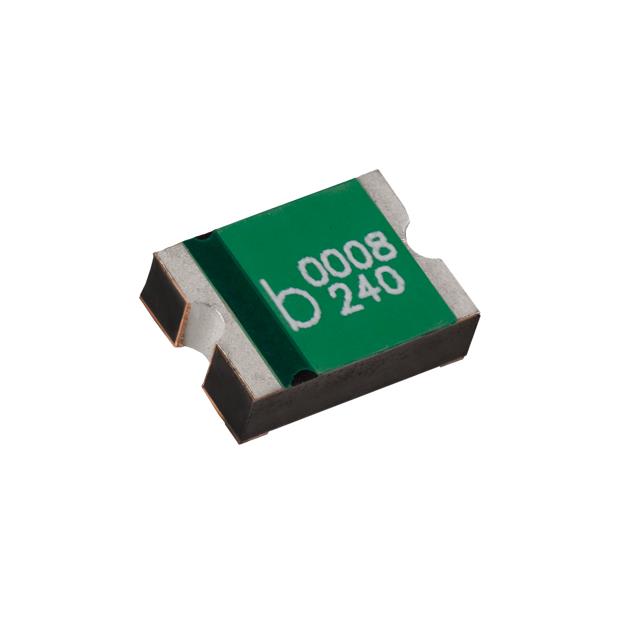

| Part Number | 0ZAF0005FF28 | 0ZAF0008FF28 | 0ZAF0012FF28 | 0ZAF0013FF28 |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
