0ZCM0010FF2G

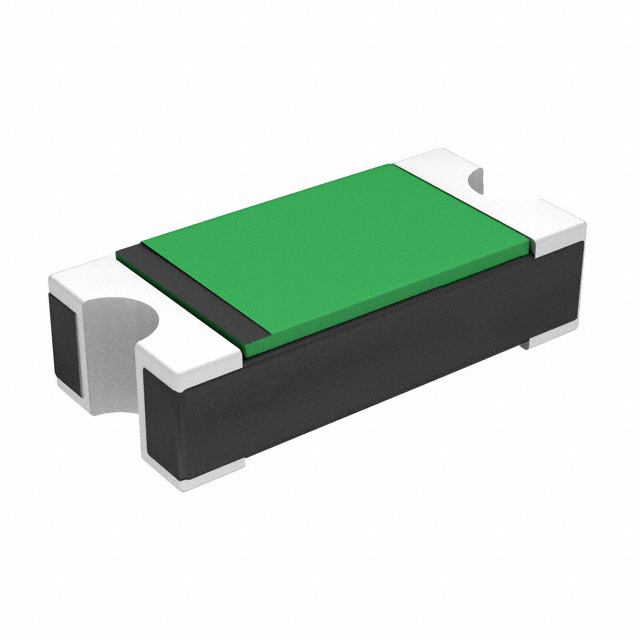

lmages are for reference only.0ZCM0010FF2G
PTC RESET FUSE 15V 100MA 0603
Datasheet0603 (1608 Metric), Concave
64,547 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 15V 100 mA Ih Surface Mount 0603 (1608 Metric), Concave
0ZCM0010FF2G
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ZCM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 250 mA |
| Current - Max | 40 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.063" L x 0.029" W (1.60mm x 0.73mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.75mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 900 mOhms |
| Resistance - Post Trip (R1) (Max) | 8 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 0ZCM0001FF2G | 0ZCM0002FF2G | 0ZCM0003FF2G | 0ZCM0004FF2G |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 60V 10MA 0603 | PTC RESET FUSE 60V 20MA 0603 | PTC RESET FUSE 30V 30MA 0603 | PTC RESET FUSE 24V 40MA 0603 |
| Series | 0ZCM | 0ZCM | 0ZCM | 0ZCM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
