1-1393817-6

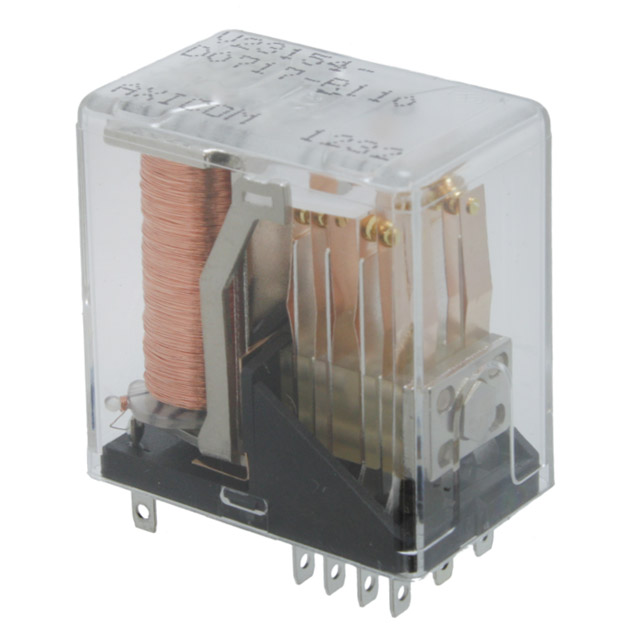

lmages are for reference only.1-1393817-6
RELAY GENERAL PURPOSE 4PDT 2A
Datasheet-
62,478 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) Socketable
1-1393817-6
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23003, AXICOM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | - |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 125VAC, 150VDC - Max |
| Load - Max Switching | 250VA, 300W |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | 1393817 |
| Coil Current | - |
| Coil Resistance | - |
| Product Attribute | |
|
|
|
| Part Number | 1-1393817-8 | 1-1393810-3 | 1-1393810-8 | 1-1393812-0 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPDT 2A 60V | RELAY GEN PURP DPDT 200MA 1.1V | RELAY GENERAL PURPOSE DPDT 2A 7V | RELAY GEN PURPOSE DPDT 2A 24V |
| Series | V23003, AXICOM | V23154, AXICOM | V23154, AXICOM | V23054, AXICOM |
| Packaging | Box | Bulk | Bulk | Bulk |

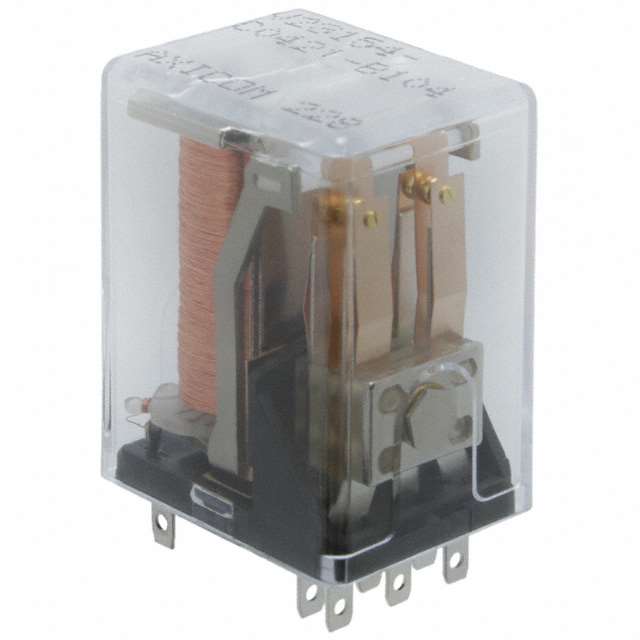

Recommended Products
