1-1423156-1

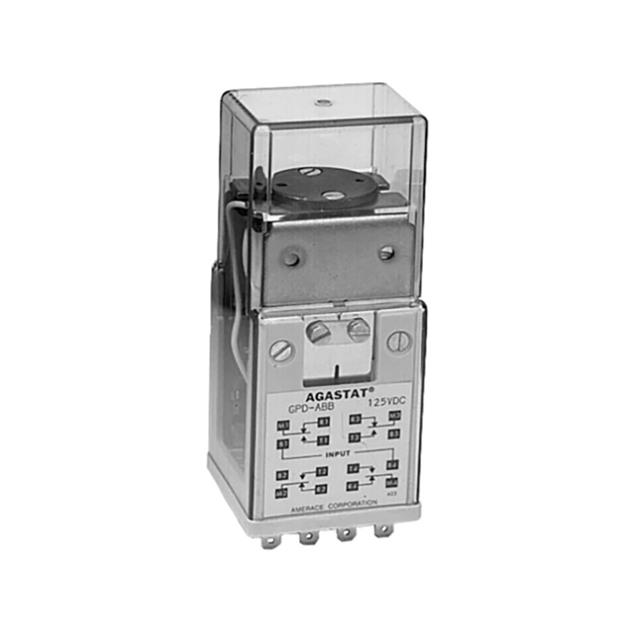

lmages are for reference only.1-1423156-1
RELAY GEN PURPOSE 4PDT 120V
Datasheet-
12,856 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
1-1423156-1
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | GP, AGASTAT |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Socketable |
| Coil Voltage | 120VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | - |
| Load - Max Switching | - |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 18 ms |
| Release Time | 35 ms |
| Operating Temperature | 0°C ~ 60°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | 1423156 |
| Product Attribute |  |
 |
 |
|
| Part Number | 1-1423156-0 | 1-1423156-2 | 1-1423156-3 | 1-1423155-6 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GEN PURPOSE 4PDT 10A 24V | RELAY GEN PURP 4PDT 10A 24V | RELAY GEN PURPOSE | RELAY GEN PURPOSE |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
