1-1614447-0
lmages are for reference only.1-1614447-0
RES 1.2K OHM 0.1% 1/10W 0805 1K
Datasheet0805 (2012 Metric)
61,453 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.2 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Thin Film
1-1614447-0
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | TE Connectivity Passive Product |
| Series | RN73, Holsworthy |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Resistance | 1.2 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thin Film |
| Features | - |
| Temperature Coefficient | ±10ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | 1614447 |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1-1614707-1 | 1-1614707-2 | 1-1614707-4 | 1-1614895-0 |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | |||

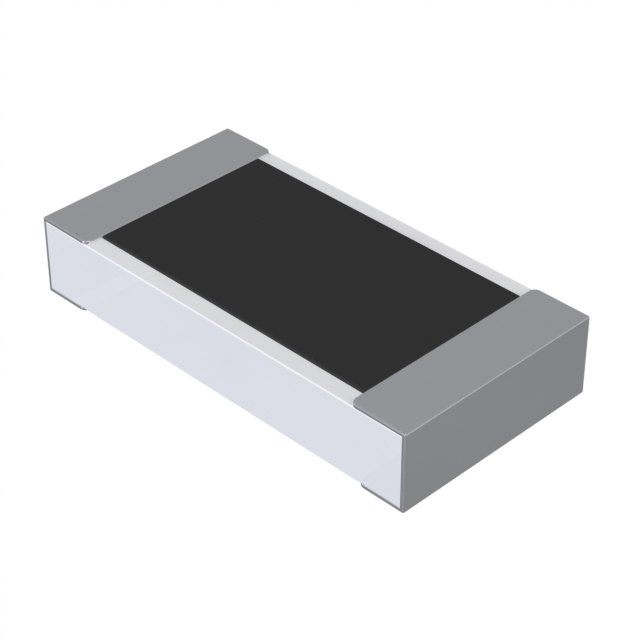

| Description | RES SMD 1.82K OHM 0.1% 1/8W 1206 | RES SMD 3.92K OHM 0.1% 1/8W 1206 | RES SMD 30.1K OHM 0.1% 1/8W 1206 | RES SMD 9.34KOHM 0.1% 1/10W 0805 |
| Series | TE Connectivity Passive Product | |||
| Packaging | Tape & Reel (TR) |
