RELAY GENERAL PURPOSE 4PDT 2A
Datasheet-
13,870 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

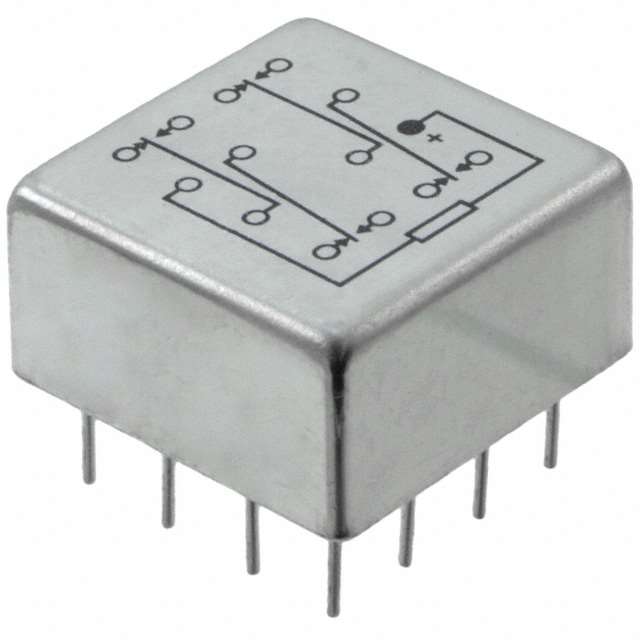

General Purpose Relay 4PDT (4 Form C) Chassis Mount
1-1617086-1
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | 3SBM, CII |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 26.5VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | - |
| Load - Max Switching | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Solder Hook |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | - |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | Military |
| Qualification | MIL-R-39016/31 |
| Base Product Number | 3SBM1 |
| Coil Current | - |
| Coil Resistance | - |
| Product Attribute | |
|
|
 |
| Part Number | 1-1617086-2 | 1-1617086-4 | 1-1617086-5 | 1-1617086-7 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RELAY GENERAL PURPOSE 4PDT 2A 6V | RELAY GENERAL PURPOSE 4PDT 2A | RELAY GENERAL PURPOSE 4PDT 2A | RELAY |
| Series | 3SBM, CII | 3SBM, CII | 3SBM, CII | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
