1-1825010-2
lmages are for reference only.1-1825010-2
SWITCH SLIDE DPDT 300MA 115V
Datasheet-
99,452 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Slide Switch DPDT Surface Mount, Right Angle
1-1825010-2
| Category | Switches - Slide Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | ASE |
| Packaging | Tube |
| RoHS Status | Not applicable |
| Circuit | DPDT |
| Contact Timing | Shorting (MBB) |
| Switch Function | On-On |
| Current Rating (Amps) | 300mA (AC) |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | - |
| Actuator Type | Standard |
| Actuator Length | 2.67mm |
| Contact Material | Copper Alloy |
| Contact Finish | Silver |
| Mounting Type | Surface Mount, Right Angle |
| Termination Style | J Lead |
| Features | - |
| Operating Temperature | -40°C ~ 80°C |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Switch Travel | 2.79mm |
| Mechanical Life | 15,000 Cycles |
| Electrical Life | 15,000 Cycles |
| Operating Force | 950gf |
| Base Product Number | 1825010 |
| Product Attribute |  |
 |
 |
|

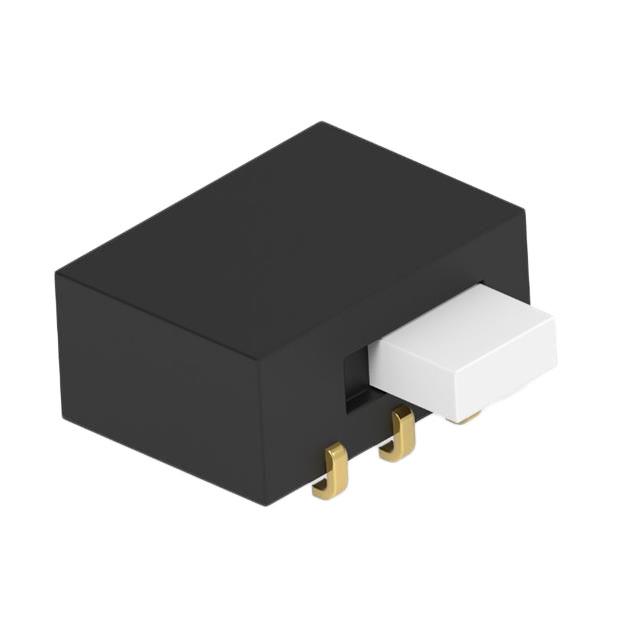

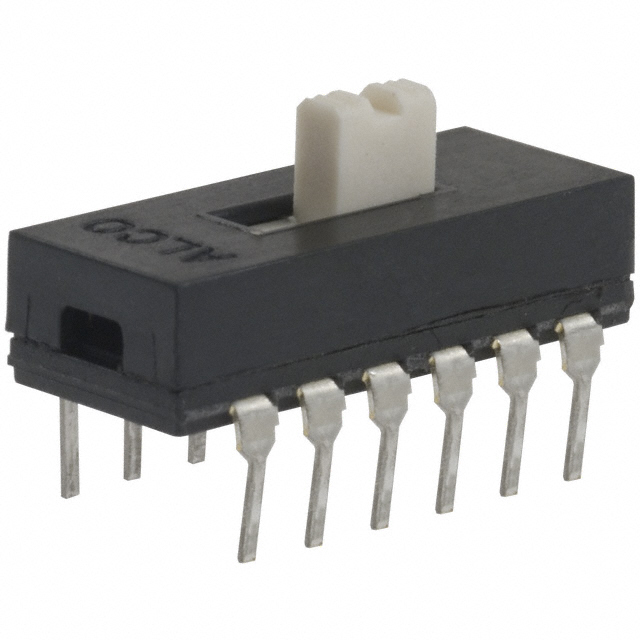

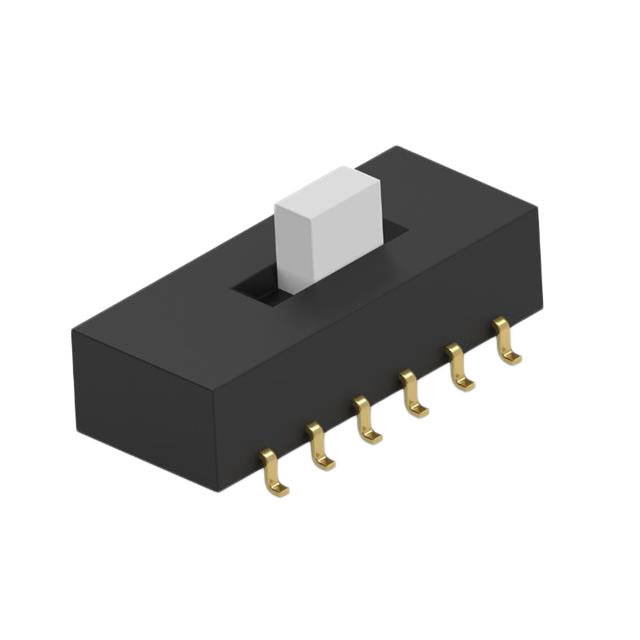

| Part Number | 1-1825010-1 | 1-1825010-4 | 1-1825010-7 | 1-1825011-2 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SLIDE DPDT 0.4VA 20V | SWITCH SLIDE 4PDT 0.4VA 20V | SWITCH SLIDE 4PDT 0.4VA 20V | SWITCH SLIDE DPDT 300MA 115V |
| Series | ASE | ASE | ASE | ASF |
| Packaging | Tube | Bulk | Bulk | Tape & Reel (TR) |
