1-2377473-1
lmages are for reference only.1-2377473-1
4POS,TAB2.8X0.8,HDR ASSY,180DEG,
Datasheet-
97,106 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Panel Mount, Through Hole 4 position 0.236" (6.00mm)
1-2377473-1
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | Heavy Duty Sealed Connector Series, MCP 2.8 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Female Socket |
| Pitch - Mating | 0.236" (6.00mm) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.236" (6.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Panel Mount, Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.122" (3.10mm) |
| Overall Contact Length | - |
| Insulation Height | 1.425" (36.20mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Guide Pin |
| Operating Temperature | -40°C ~ 140°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 20A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

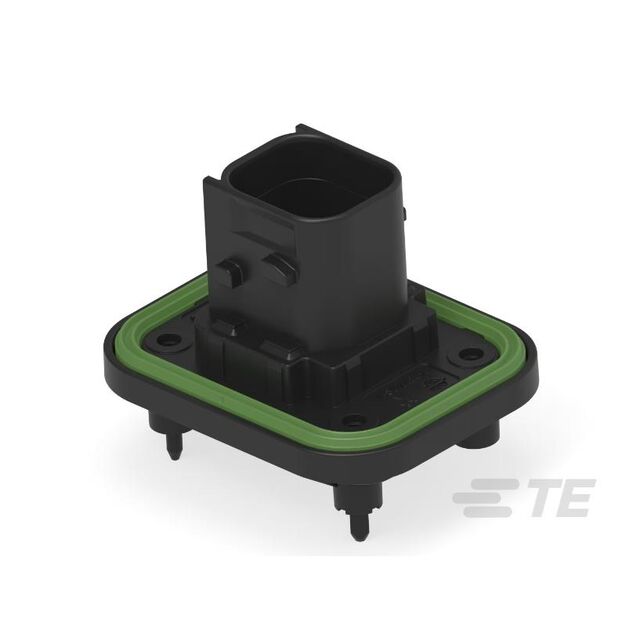

| Part Number | 1-2377477-1 | 1-2371337-0 | 1-2372488-7 | 1-2373375-0 |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | |
| Description | 6POS,TAB1.5X0.64,HDR ASSY,180DEG | 5.0 PK SMT, 2P HDR ASSY, RED | D1100 HDR ASSY H 34P XBLACK PRE- | 10P,2MM,SHRD HDR,DRVT,SMD,SN,TB |
| Series | Heavy Duty Sealed Connector Series, MCP | Power Key | Dynamic D-1100 | AMPMODU |
| Packaging | Box | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
