1.5KE24HE3/73
lmages are for reference only.1.5KE24HE3/73
TVS DIODE 19.4VWM 34.7VC 1.5KE
DatasheetDO-201AA, DO-27, Axial
64,420 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
34.7V Clamp 43.2A Ipp Tvs Diode Through Hole 1.5KE
1.5KE24HE3/73
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 19.4V |
| Voltage - Breakdown (Min) | 21.6V |
| Voltage - Clamping (Max) @ Ipp | 34.7V |
| Current - Peak Pulse (10/1000µs) | 43.2A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | 1.5KE |
| Base Product Number | 1.5KE24 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |

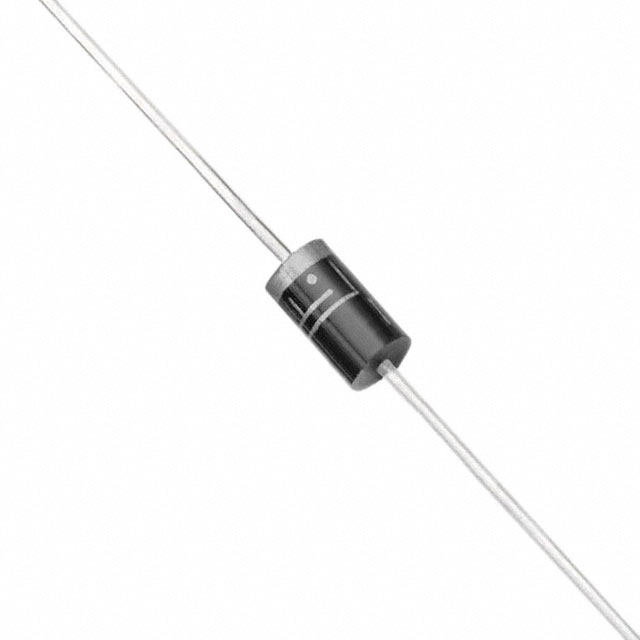

| Part Number | 1.5KE24HE3/54 | 1.5KE24 | 1.5KE24 | 1.5KE24-B |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 19.4VWM 34.7VC 1.5KE | 1500W, 24V, 10%, UNIDIRECTIONAL, | TVS D5.4X7.5 19.4V 1500W UNIDIR | TVS DIODE 20.5VWM 34.86VC DO201 |
| Series | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
