1.5KE56CA

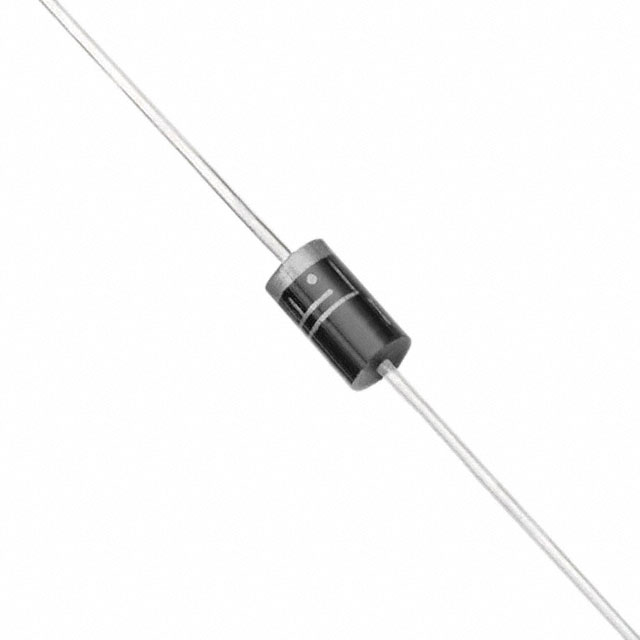

lmages are for reference only.1.5KE56CA
TVS D5.4X7.5 47.8V 1500W BIDIR
DatasheetDO-201AA, DO-27, Axial
64,846 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
77V Clamp 19.7A Ipp Tvs Diode Through Hole DO-201
1.5KE56CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | 1.5KE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 47.8V |
| Voltage - Breakdown (Min) | 53.2V |
| Voltage - Clamping (Max) @ Ipp | 77V |
| Current - Peak Pulse (10/1000µs) | 19.7A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Base Product Number | 1.5KE |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | 1.5KE56C | 1.5KE56C | 1.5KE56C-B | 1.5KE56C-E3/54 |
| Manufacturer | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1500W, 56V, 10%, BIDIRECTIONAL, | TVS D5.4X7.5 45.4V 1500W BIDIR | TVS DIODE 47.8VWM 80.85VC DO201 | TVS DIODE 45.4VWM 80.5VC 1.5KE |
| Series | Taiwan Semiconductor Corporation | Littelfuse Inc. | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
