1.5SMCJ18A_R1_00001
lmages are for reference only.1.5SMCJ18A_R1_00001
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-214AB, SMC
21,750 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
29.2V Clamp 51.4A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
1.5SMCJ18A_R1_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | 1.5SMCJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 18V |
| Voltage - Breakdown (Min) | 20V |
| Voltage - Clamping (Max) @ Ipp | 29.2V |
| Current - Peak Pulse (10/1000µs) | 51.4A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | 1.5SMC |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

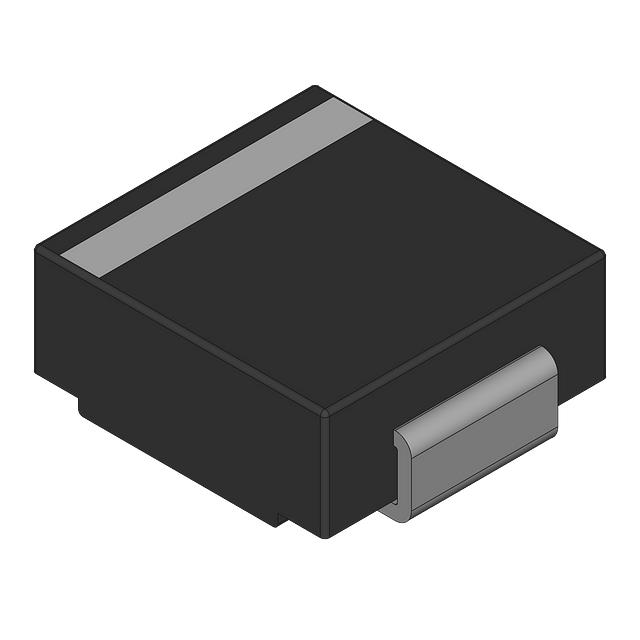

| Part Number | 1.5SMCJ180AS_R1_00001 | 1.5SMCJ180A_R1_00001 | 1.5SMCJ180CA_R1_00001 | 1.5SMCJ18A |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TRANSIENT VOLTAGE SUPPRESSOR | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | TVS DIODE 18VWM 29.2VC DO-214AB |
| Series | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
