1.5SMCJ33CA-AQ
lmages are for reference only.1.5SMCJ33CA-AQ
TVS DIODE 33VWM 53.3VC DO-214AB
DatasheetDO-214AB, SMC
61,995 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
53.3V Clamp 28.1A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
1.5SMCJ33CA-AQ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 33V |
| Voltage - Breakdown (Min) | 36.7V |
| Voltage - Clamping (Max) @ Ipp | 53.3V |
| Current - Peak Pulse (10/1000µs) | 28.1A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

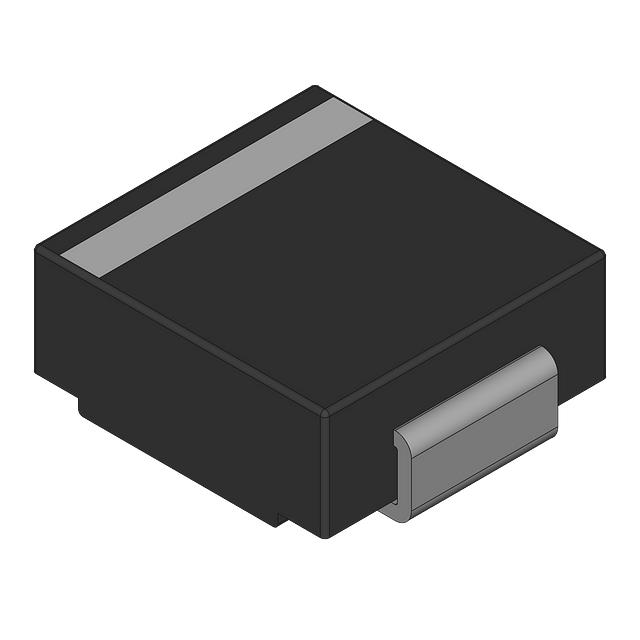

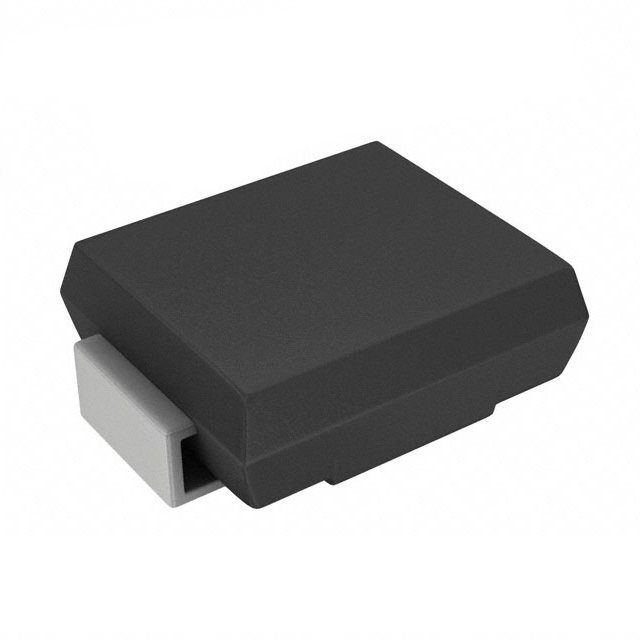

| Part Number | 1.5SMCJ33CA | 1.5SMCJ33CA-AU_R1_000A1 | 1.5SMCJ33CA_R1_00001 | 1.5SMCJ30A |
| Manufacturer | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS SMC 33V 1500W BIDIR | SURFACE MOUNT TRANSIENT VOLTAGE | SURFACE MOUNT TRANSIENT VOLTAGE | TVS SMC 30V 1500W UNIDIR |
| Series | Diotec Semiconductor | Panjit International Inc. | Panjit International Inc. | Diotec Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
