1.5SMCJ9.0A_R1_00001

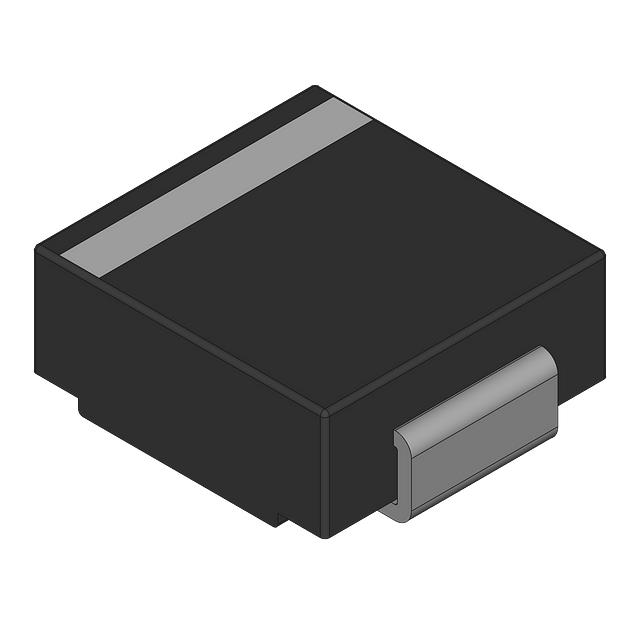

lmages are for reference only.1.5SMCJ9.0A_R1_00001
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-214AB, SMC
12,447 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15.4V Clamp 97.4A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
1.5SMCJ9.0A_R1_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | 1.5SMCJ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 9V |
| Voltage - Breakdown (Min) | 10V |
| Voltage - Clamping (Max) @ Ipp | 15.4V |
| Current - Peak Pulse (10/1000µs) | 97.4A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | 1.5SMC |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1.5SMCJ9.0A | 1.5SMCJ9.0AS_R1_00001 | 1.5SMCJ9.0CA | 1.5SMCJ9.0CA_R1_00001 |
| Manufacturer | Diotec Semiconductor | Panjit International Inc. | Diotec Semiconductor | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE 9VWM 15.4VC DO-214AB | TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 9VWM 15.4VC DO-214AB | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | Diotec Semiconductor | Panjit International Inc. | Diotec Semiconductor | Panjit International Inc. |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
