1 MBAR-D-4V-PRIME

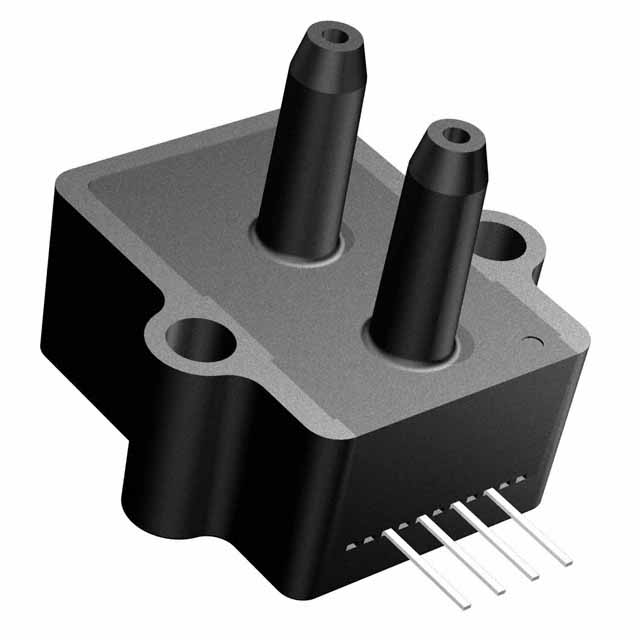

lmages are for reference only.1 MBAR-D-4V-PRIME
SENSOR 0.02PSID 0.19" 4.25V
Datasheet4-SIP Module
77,761 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±0.02PSI (±0.1kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0.25 V ~ 4.25 V 4-SIP Module
1 MBAR-D-4V-PRIME
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | ADCA |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Base Product Number | D-4V-PRIME |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | ±0.02PSI (±0.1kPa) |
| Output Type | Analog Voltage |
| Output | 0.25 V ~ 4.25 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | Male - 0.19" (4.8mm) Tube, Dual |
| Port Style | Barbless |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | ±3.61PSI (±24.92kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | 1 MBAR-D-4V | 1 MBAR-D-4V-MIL | 1 MBAR-D-4V-MIL | 1 INCH-D-4V |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | SENSOR 0.02PSID 0.19" 4.25V | SENSOR 0.02PSID 0.19" 4.25V | SENSOR 0.02PSID 0.19" 4.25V | SENSOR 0.04PSID 0.19" 4.25V |
| Series | ADCA | ADCA | ADCA | ADCA |
| Packaging | Tube | Tube | Tube | Tube |
