Product CatalogPart Number
10127721-024GLF
Manufacturer
Amphenol ICC (FCI)Description
10127721-024GLF-MTK 3.0 DR 02P R
Datasheet
DatasheetPackage
-
In Stock
38,223 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
10127721-024GLF
10127721-024GLF
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole 2 position
Quick Inquiry
10127721-024GLF
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (FCI) |
| Series | Minitek® Pwr 3.0 |
| Packaging | Tray |
| RoHS Status | |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.126" (3.20mm) |
| Overall Contact Length | - |
| Insulation Height | 0.433" (11.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | Varies by Wire Gauge |
| Voltage Rating | 600VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|

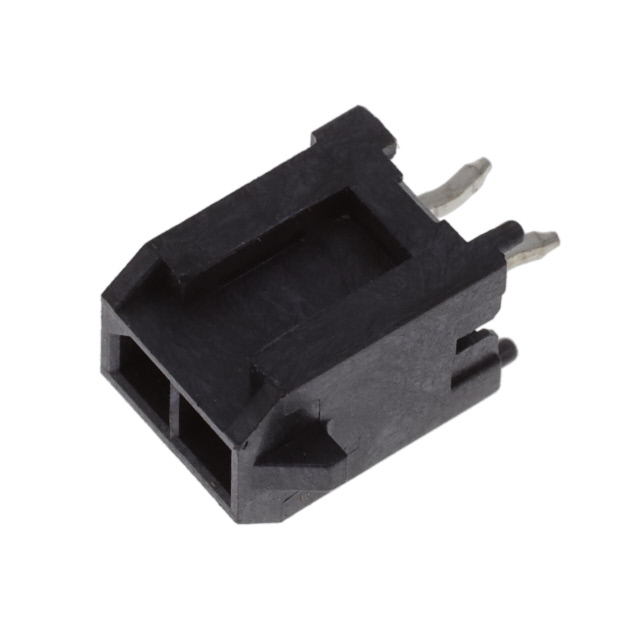

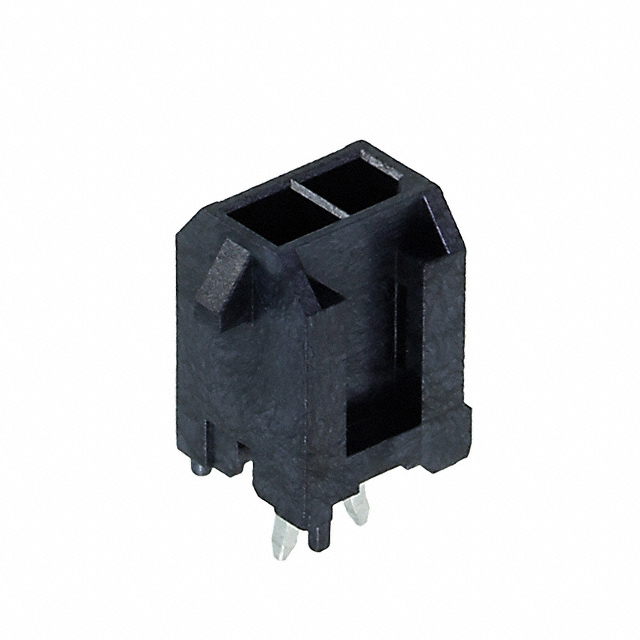

| Part Number | 10127721-021GLF | 10127721-021LF | 10127721-021RLF | 10127721-022GLF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | CONN PWR3.0 VT HEADER | CONN HEADER VERT 2POS | CONN MTK3.0 DR 02P VT HDR SN | CONN PWR3.0 VT HEADER |
| Series | Minitek® Pwr 3.0 | Minitek® Pwr 3.0 | Minitek® Pwr 3.0 | Minitek® Pwr 3.0 |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tray |
Customers Also Interested in
Recommended Products
10127588-138TRLF
Amphenol ICC (FCI)
10127616-122A02LF
Amphenol ICC (FCI)
10127720-021GLF
Amphenol ICC (FCI)

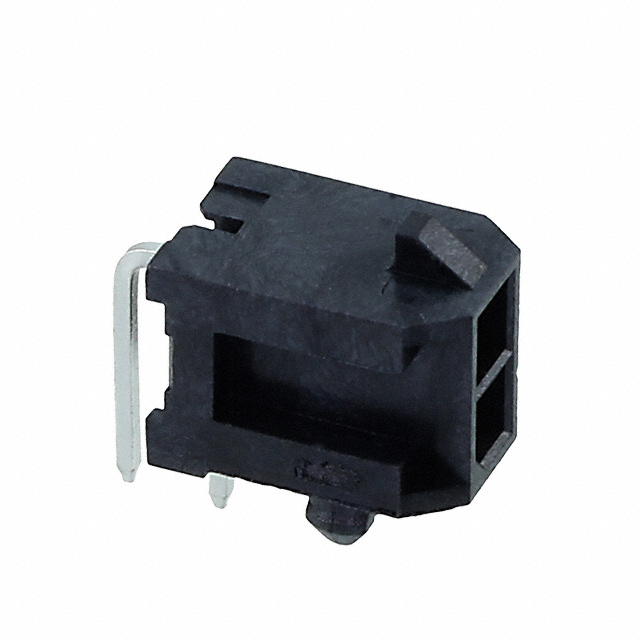

10127720-021LF
Amphenol ICC (FCI)
10127720-021RLF
Amphenol ICC (FCI)
10127720-022GLF
Amphenol ICC (FCI)

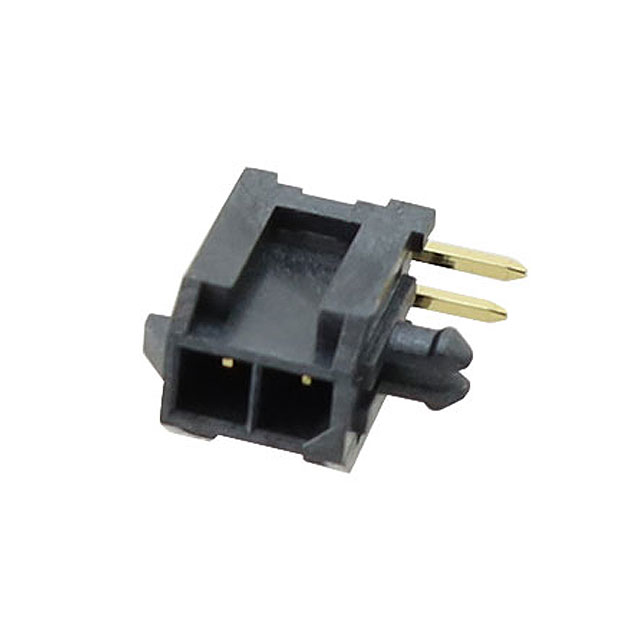

10127720-022LF
Amphenol ICC (FCI)
10127720-023GLF
Amphenol ICC (FCI)
10127720-024GLF
Amphenol ICC (FCI)

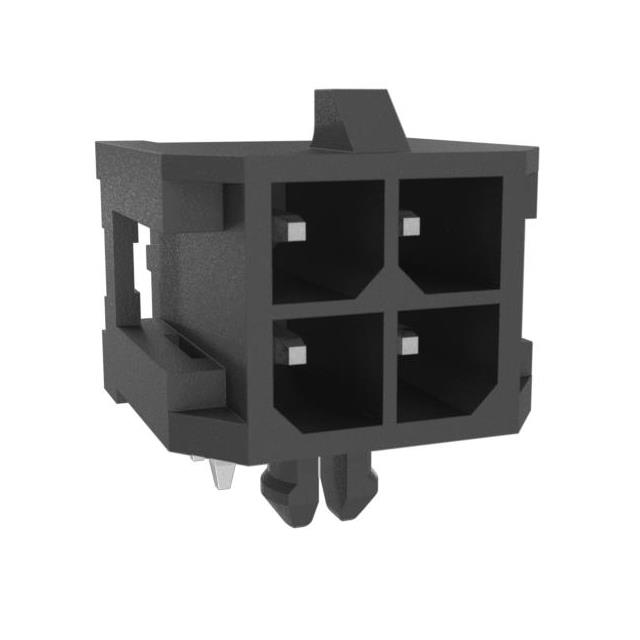

10127720-041GLF
Amphenol ICC (FCI)
10127720-041GNLF
Amphenol ICC (FCI)

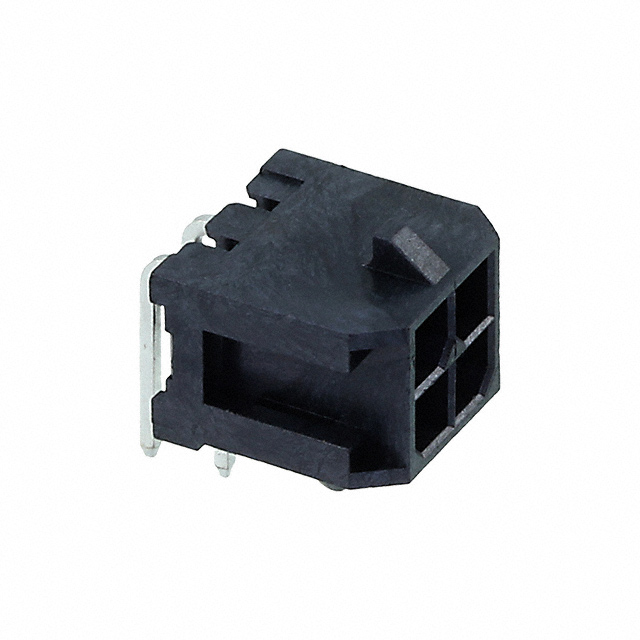

10127720-041LF
Amphenol ICC (FCI)
10127720-041RLF
Amphenol ICC (FCI)
10127720-042GLF
Amphenol ICC (FCI)
10127720-042GRLF
Amphenol ICC (FCI)

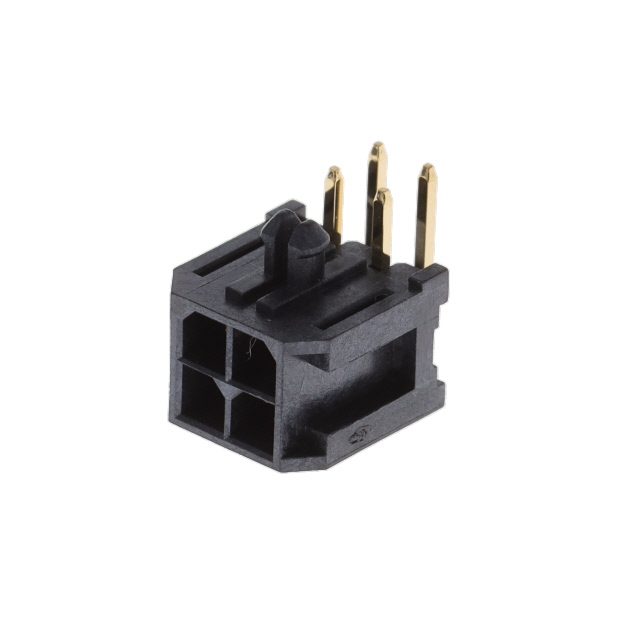

10127720-042LF
