Product CatalogPart Number
10143716-212KLF
Manufacturer
Amphenol ICC (FCI)Description
CONN MICROSPACE VERTICAL HEAD
Datasheet
DatasheetPackage
-
In Stock
26,428 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
10143716-212KLF
10143716-212KLF
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount 12 position 0.059" (1.50mm)
Quick Inquiry
10143716-212KLF
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (FCI) |
| Series | Minitek MicroSpace™ 1.50mm |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.526" (13.35mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -40°C ~ 130°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 4A |
| Voltage Rating | 48V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | Automotive, General Purpose, Industrial |
| Base Product Number | 10143716 |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | 10143716-104KLF | 10143716-105KLF | 10143716-106KLF | 10143716-107KLF |
| Manufacturer | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| RoHS Status | ||||
| Description | CONN MICROSPACE VERTICAL HEAD | CONN MICROSPACE VERTICAL HEAD | CONN MICROSPACE VERTICAL HEAD | CONN MICROSPACE VERTICAL HEAD |
| Series | Minitek MicroSpace™ 1.50mm | Minitek MicroSpace™ 1.50mm | Minitek MicroSpace™ 1.50mm | Minitek MicroSpace™ 1.50mm |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

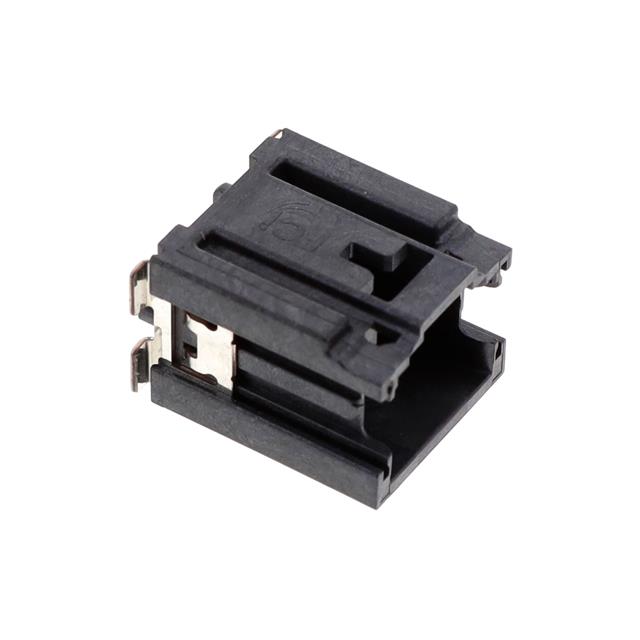

10143535-104KLF
Amphenol ICC (FCI)

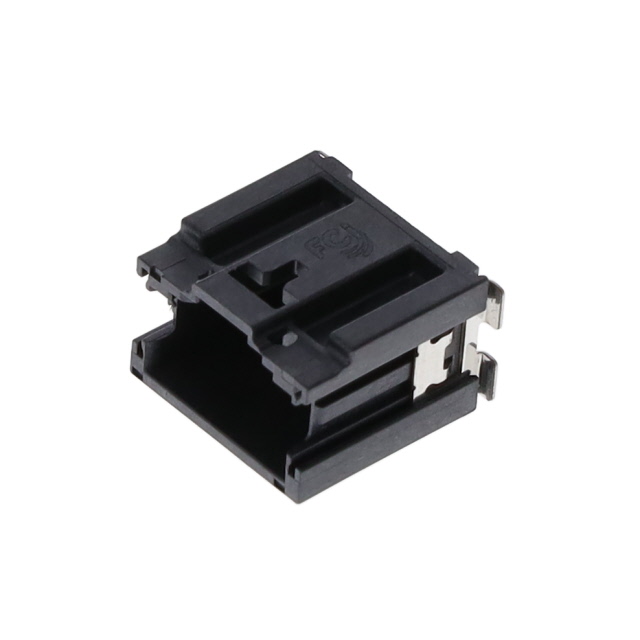

10143535-105KLF
Amphenol ICC (FCI)
10143535-106KLF
Amphenol ICC (FCI)
10143535-107KLF
Amphenol ICC (FCI)

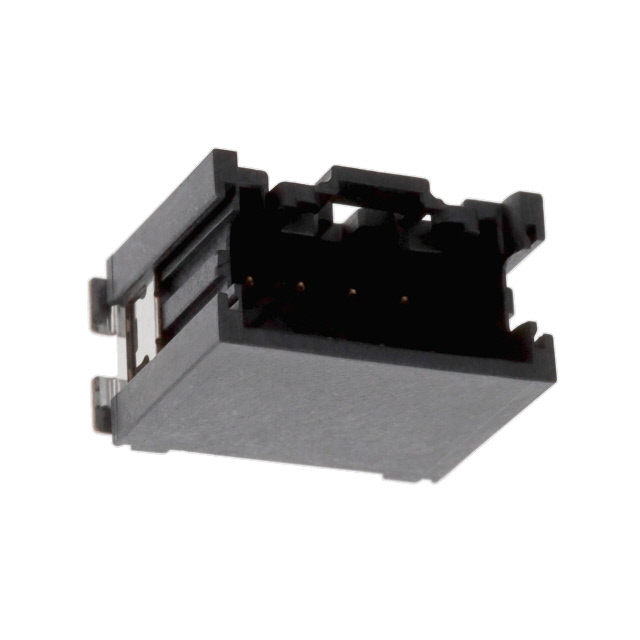

10143535-108KLF
Amphenol ICC (FCI)
10143535-109KLF
Amphenol ICC (FCI)
10143535-111KLF
Amphenol ICC (FCI)

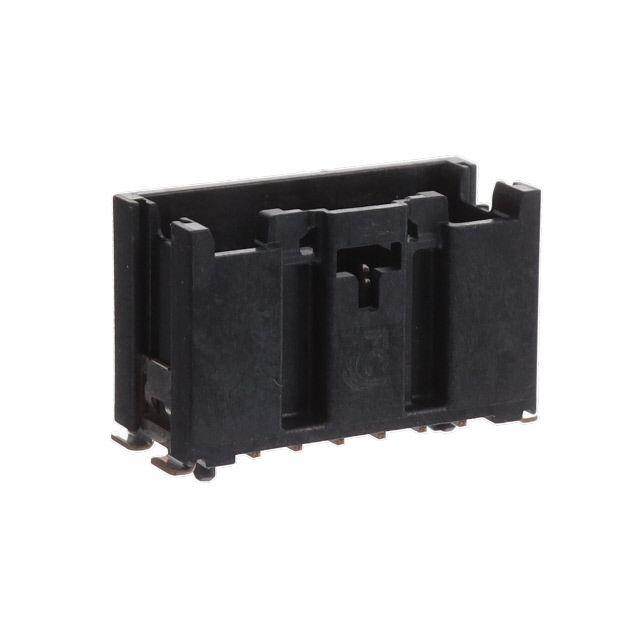

10143535-112KLF
Amphenol ICC (FCI)
10143535-113KLF
Amphenol ICC (FCI)
10143535-114KLF
Amphenol ICC (FCI)
10143535-115KLF
Amphenol ICC (FCI)

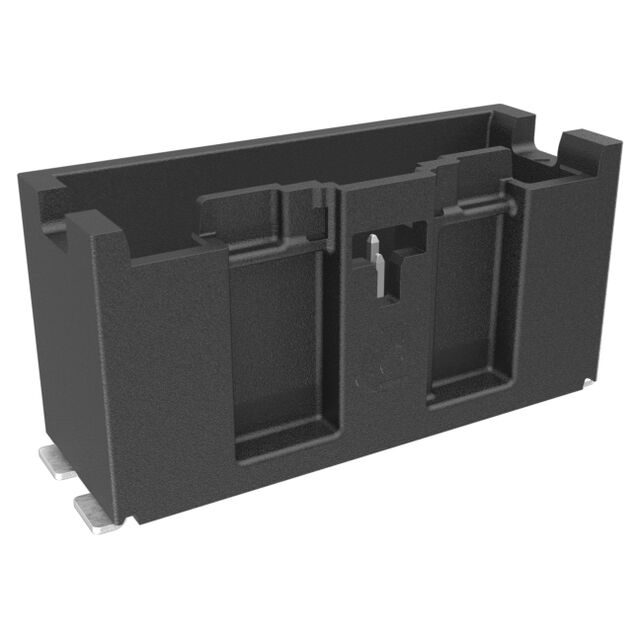

10143535-116KLF
