101C473U030AE2B

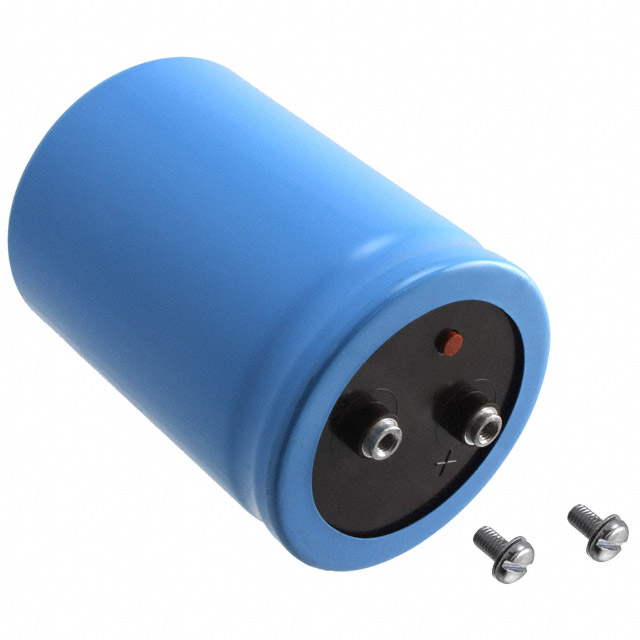

lmages are for reference only.101C473U030AE2B
CAP ALUM 30V POLAR
DatasheetRadial, Can - Screw Terminals
54,705 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 mF 30 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 10.6mOhm @ 120Hz 5000 Hrs @ 105°C
101C473U030AE2B
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 101C |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 47 mF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 30 V |
| ESR (Equivalent Series Resistance) | 10.6mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 20.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 22.018 A @ 10 kHz |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 5.187" (131.75mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
 |
| Part Number | 101C402T200CB2B | 101C402T200EE2B | 101C402T250CJ2B | 101C403U063CJ2D |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | CAP ALUM 200V POLAR | CAP ALUM SCREW CHAS MT | CAP ALUM SCREW CHAS MT | CAP ALUM 63V POLAR |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
