Product CatalogPart Number
104698
Manufacturer
TE Connectivity ErniDescription
2MM HM B19 95POS F SHLD CL1
Datasheet
DatasheetPackage
-
In Stock
45,714 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
104698
104698
lmages are for reference only.Payment Methods
Delivery Services
95 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
Quick Inquiry
104698
Specifications
| Category | Connectors, Interconnects - Backplane Connectors - Hard Metric-Standard |
| Manufacturer | TE Connectivity Erni |
| Series | ERMET |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle, Female Sockets |
| Connector Style | B 19 |
| Number of Positions | 95 |
| Number of Positions Loaded | All |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 5 |
| Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit |
| Connector Usage | - |
| Contact Finish | - |
| Contact Finish Thickness | - |
| Voltage Rating | - |
| Operating Temperature | - |
| Features | - |
| Base Product Number | - |
| Current Rating (Amps) | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 104086-E | 104088-E | 104108 | 104112-E |
| Manufacturer | TE Connectivity Erni | TE Connectivity Erni | TE Connectivity Erni | TE Connectivity Erni |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

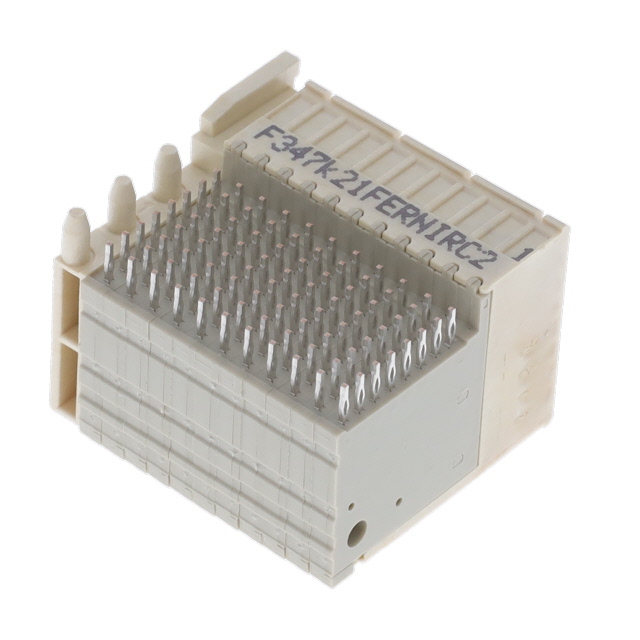

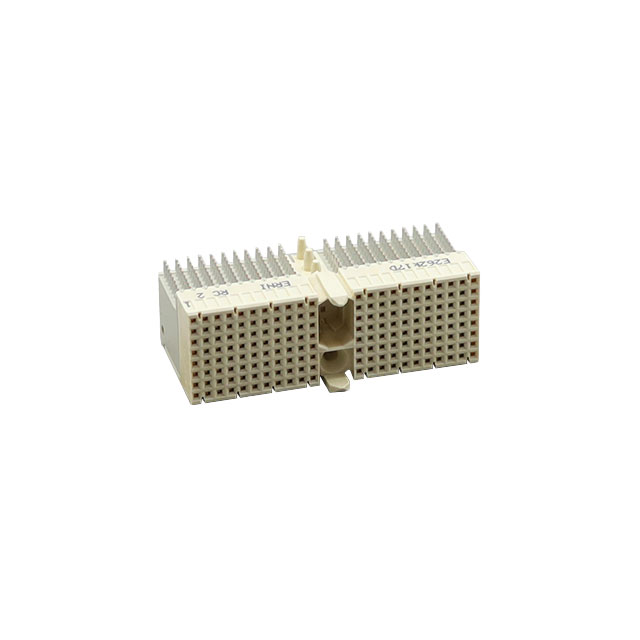

| Description | 2MM HM D 176POS F | 2MM HM F 88POS F RA | 2MM HM B19 133POS M 3.7MM | 2MM HM A 110POS F VERT 3.7MM |
| Series | ERMET | - | ERMET | ERMET |
| Packaging | Tray | Tray | Tray | Tray |
