105K500CS6G-FA

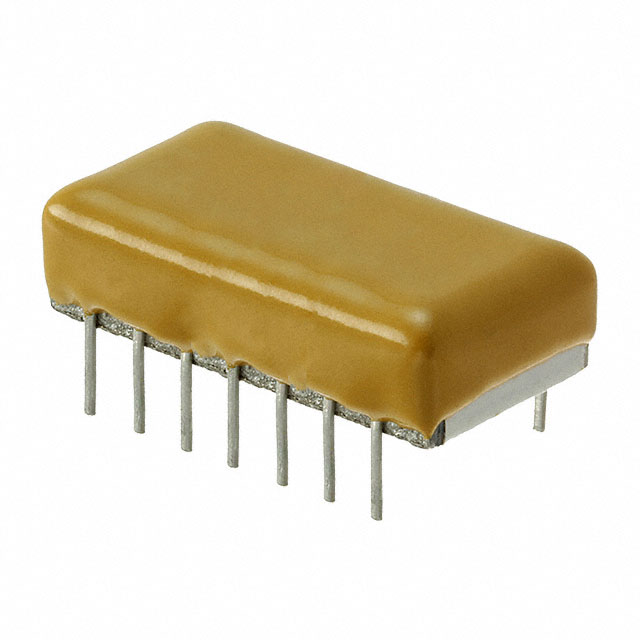

lmages are for reference only.105K500CS6G-FA
CAP FILM 1UF 10% 500VDC 16SMD
Datasheet16-SMD, Gull Wing
70,211 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µF Film Capacitor 500V Polymer, Metallized 16-SMD, Gull Wing
105K500CS6G-FA
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | Capstick® CS |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 500V |
| Dielectric Material | Polymer, Metallized |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD, Gull Wing |
| Size / Dimension | 1.134" L x 0.701" W (28.80mm x 17.80mm) |
| Height - Seated (Max) | 0.319" (8.10mm) |
| Termination | Gull Wing |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - |
| Features | Low ESR, Low ESL |
| ESR (Equivalent Series Resistance) | 8 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

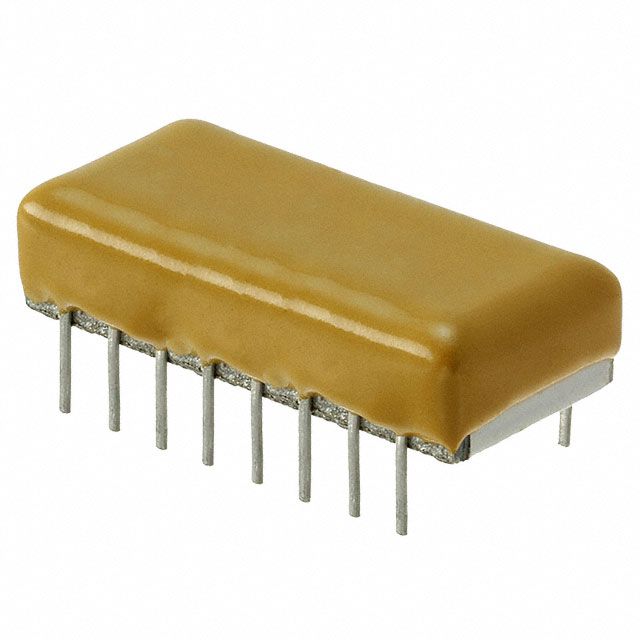

| Part Number | 105K500CS6 | 105K500CS6-FA | 105K500CS6G | 105K250CS6 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CAP FILM 1UF 10% 500VDC 16DIP | CAP FILM 1UF 10% 500VDC 16DIP | CAP FILM 1UF 10% 500VDC 16SMD | CAP FILM 1UF 10% 250VDC 6DIP |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Tube | Tube | Tube |
