Product CatalogPart Number
10DCPE_09S4
Manufacturer
GAPTEC ElectronicDescription
ISOLATED MODULE DC DC CONVERTERS
Datasheet
DatasheetPackage
5-DIP Module
In Stock
71,812 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
10DCPE_09S4
10DCPE_09S4
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 9V 1.11A 100V - 1000V Input
Quick Inquiry
10DCPE_09S4
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | GAPTEC Electronic |
| Series | 10DCPE_4 (10W) |
| Packaging | Retail Package |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100V |
| Voltage - Input (Max) | 1000V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.11A |
| Power (Watts) | 10 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Efficiency | 76% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 4 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

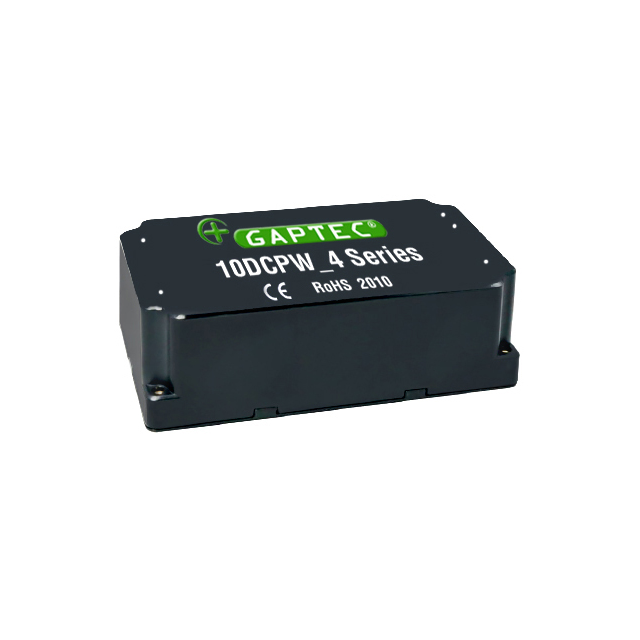

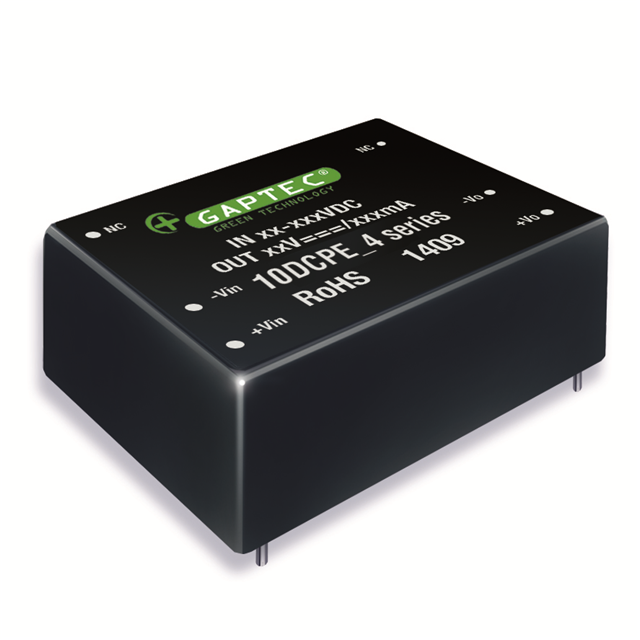

| Part Number | 10DCPE_05S4 | 10DCPE_24S4 | 10DCPW_05S4 | 1A12-N4-25PPM-F-H |
| Manufacturer | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | A-SERIES DC TO HVDC CONVERTER, S |
| Series | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | ULTRAVOLT / Advanced Energy |
| Packaging | Retail Package | Retail Package | Retail Package | Bulk |
