10TPE47MAZB
lmages are for reference only.10TPE47MAZB
CAP TANT POLY 47UF 10V 1411
Datasheet1411 (3528 Metric)
83,801 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 µF Molded Tantalum Polymer Capacitor 10 V 1411 (3528 Metric) 35mOhm @ 100kHz
10TPE47MAZB
| Category | Capacitors - Tantalum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | POSCAP™ TPE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 35mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Lead Spacing | - |
| Manufacturer Size Code | B2 |
| Ratings | - |
| Features | General Purpose |
| Base Product Number | 10TPE |
| Product Attribute |  |
 |
 |
 |
| Part Number | 10TPE150MPL | 10TPE220MIL | 10TPE220ML | 10TPE330M |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

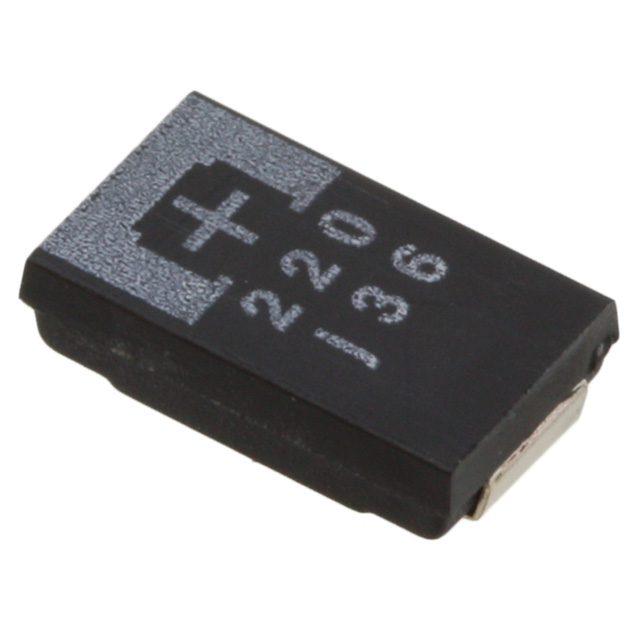

| Description | CAP TANT POLY 150UF 10V 2917 | CAP TANT POLY 220UF 10V 2917 | CAP TANT POLY 220UF 10V 2917 | CAP TANT POLY 330UF 10V 2917 |
| Series | POSCAP™ TPE | POSCAP™ TPE | POSCAP™ TPE | POSCAP™ TPE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
