Product CatalogPart Number
119927-E
Manufacturer
TE Connectivity ErniDescription
IBRIDGE 2MM 10POS M VERT SMT
Datasheet
DatasheetPackage
-
In Stock
49,001 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
119927-E
119927-E
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount 10 position 0.079" (2.00mm)
Quick Inquiry
119927-E
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | TE Connectivity Erni |
| Series | IBRIDGE ULTRA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.307" (7.80mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 98.4µin (2.50µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide, Pick and Place, Solder Retention |
| Operating Temperature | -40°C ~ 100°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 8A per Contact |
| Voltage Rating | 95V, 300V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 98.4µin (2.50µm) |
| Applications | General Purpose |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

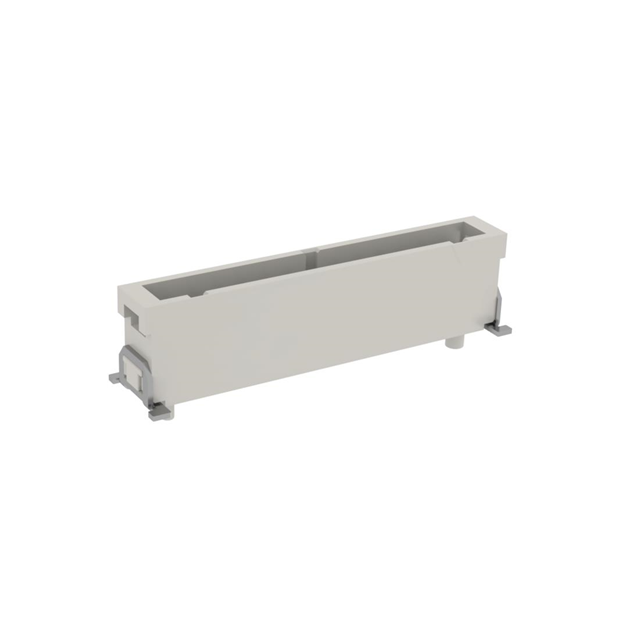

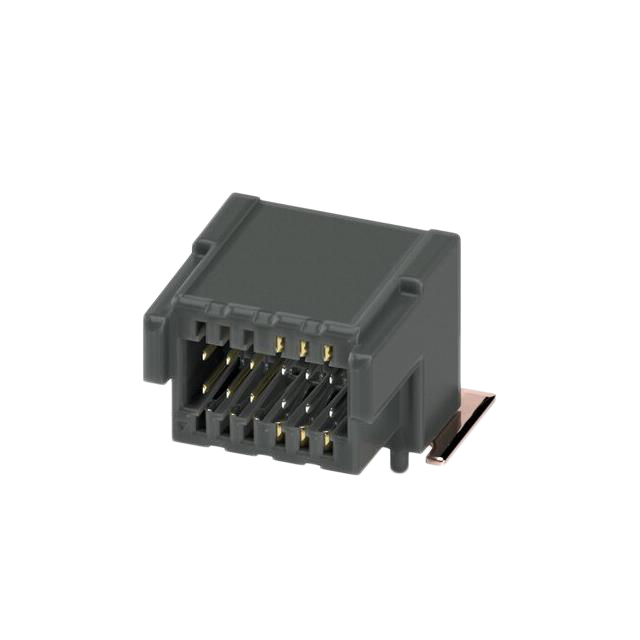

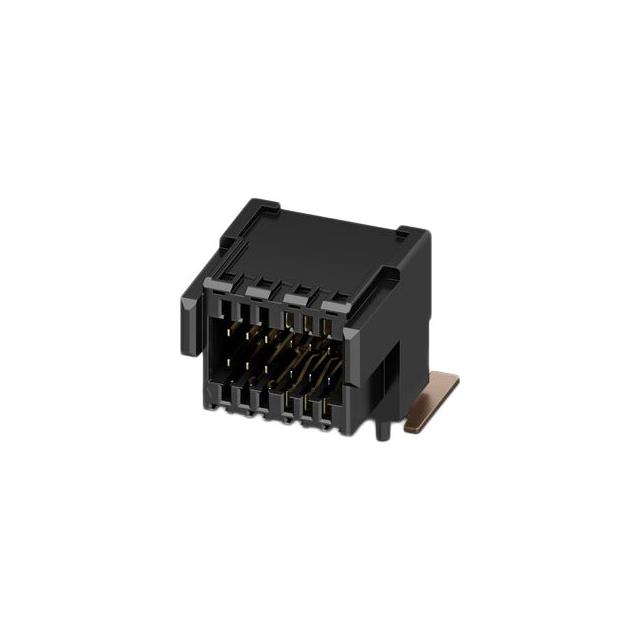

| Part Number | 119928-E | 1103599-1 | 1104548 | 1104549 |
| Manufacturer | TE Connectivity Erni | TE Connectivity AMP Connectors | Phoenix Contact | Phoenix Contact |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IBRIDGE 2MM 12POS M VERT SMT | AMPSEAL.HEADER.35 | FP 0 8/ 12-MH | FP 0 8/ 20-MH |
| Series | IBRIDGE ULTRA | - | COMBICON FP | COMBICON FP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Box | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
