121-M-211/11
lmages are for reference only.121-M-211/11
PCB;HEADER;PLUG-IN;11 P;5.08 MM
Datasheet-
57,017 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
121-M-211/11
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | WECO Electrical Connectors Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Header, Male Pins, Shrouded (2 Side) |
| Number of Positions | 11 |
| Positions Per Level | 11 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 12A |
| Voltage - IEC | 630 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Gray |
| Operating Temperature | -40°C ~ 100°C |
| Contact Mating Finish | - |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | - |
| Wire Strip Length | - |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Contact Tail Length | 0.138" (3.50mm) |
| Insulation Height | 0.331" (8.40mm) |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Product Attribute |  |
|
|
 |

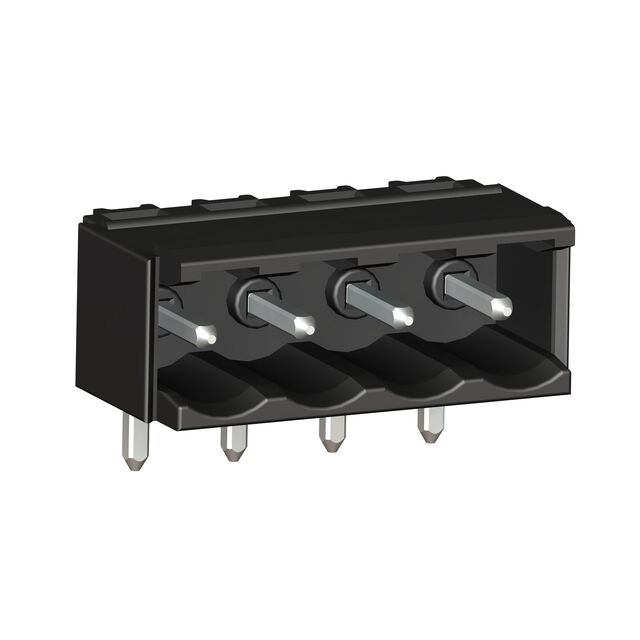

| Part Number | 121-M-211/10 | 121-M-211/12 | 121-M-211/15 | 121-M-211/02 |
| Manufacturer | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN; PCB; HEADER; 10 P ; 5.08MM | PCB;HEADER;PLUG-IN;12 P;5.08 MM | PCB;HEADER;PLUG-IN;15 P;5.08 MM | HEADER WITH SIDE WALLS FOR PLUG- |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
