125CDMCCDS-220MC
lmages are for reference only.125CDMCCDS-220MC
FIXED IND 22UH 6.5A 40.4MOHM SMD
DatasheetNonstandard
60,578 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Shielded Molded Inductor 6.5 A 40.4mOhm Max Nonstandard
125CDMCCDS-220MC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | 125CDMCC/DS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.5 A |
| Current - Saturation (Isat) | 8.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 40.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.530" L x 0.496" W (13.45mm x 12.60mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 125CDMCCDS-100MC | 125CDMCCDS-150MC | 125CDMCCDS-1R0MC | 125CDMCCDS-1R5MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ||||

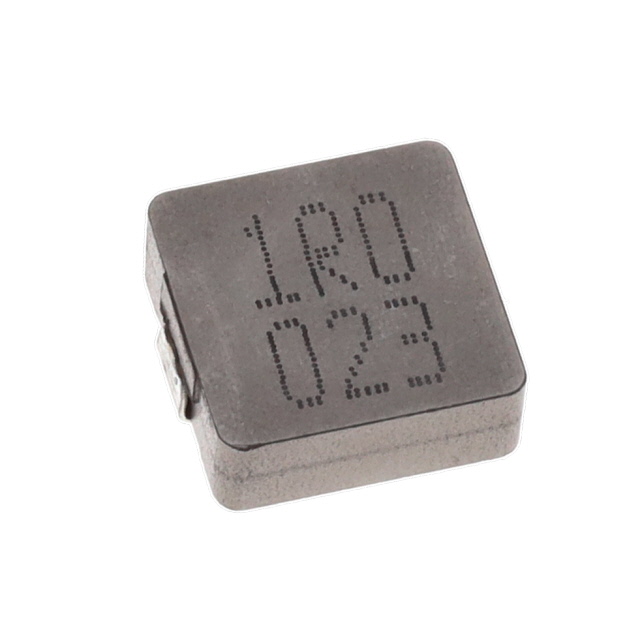

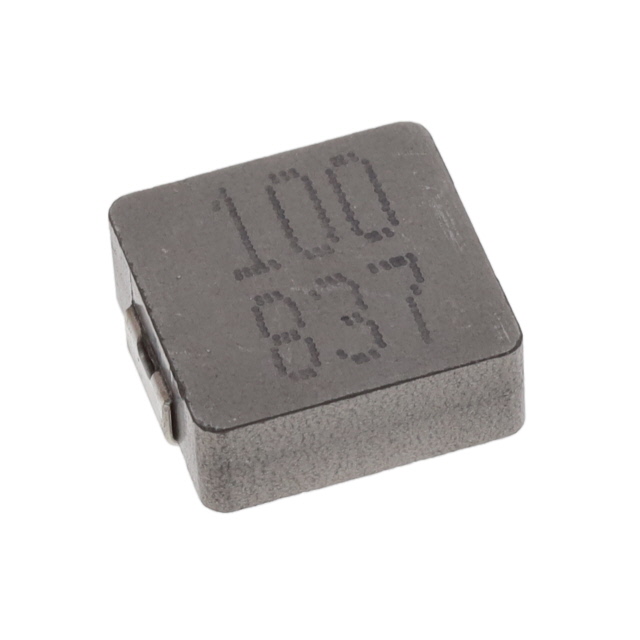

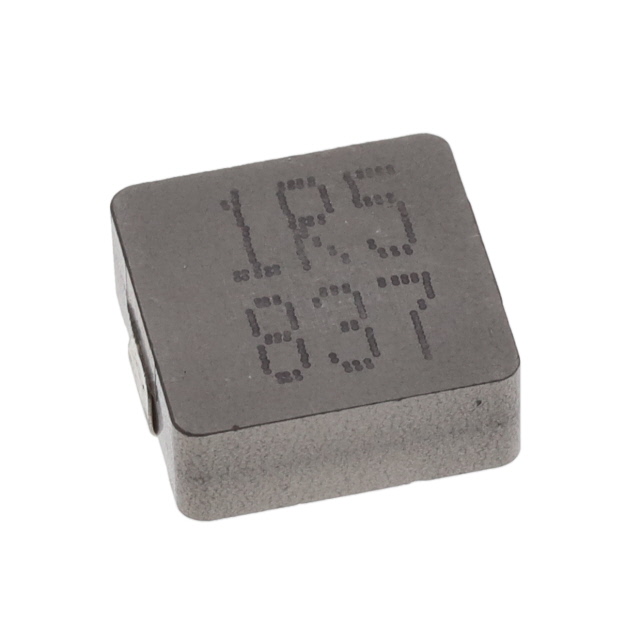

| Description | FIXED IND 10UH 9A 22 MOHM SMD | FIXED IND 15UH 8.5A 26 MOHM SMD | FIXED IND 1UH 28A 1.9 MOHM SMD | FIXED IND 1.5UH 22A 3.3MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
