1/2AA12-P4-I5

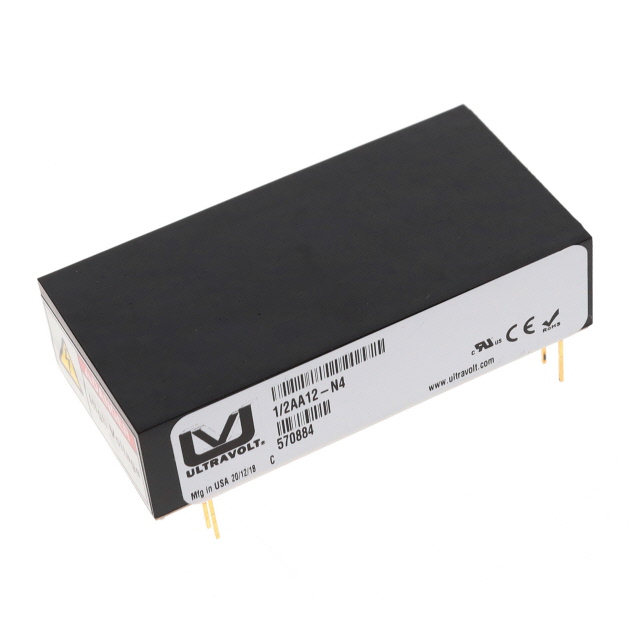

lmages are for reference only.1/2AA12-P4-I5
DC DC CONVERTER 500V 15W
Datasheet11-DIP Module
10,095 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High Voltage - Non-Isolated Module DC DC Converter 1 Output 500V 8mA 11V - 16V Input
1/2AA12-P4-I5
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Series | UltraVolt® AA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 16V |
| Voltage - Output 1 | 500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8mA |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 65°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 11-DIP Module |
| Size / Dimension | 2.97" L x 1.50" W x 0.75" H (75.4mm x 38.1mm x 19.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE, cURus |
| Standard Number | - |
| Base Product Number | 1/2AA12 |
| Voltage - Isolation | - |
| Product Attribute | |
|
|
|
| Part Number | 1/2AA12-P4-I5-25PPM | 1/2AA12-P4-I5-25PPM-H | 1/2AA12-P4-I5-25PPM-M | 1/2AA12-P4-I5-25PPM-M-H |
| Manufacturer | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 500V 15W | DC DC CONVERTER 500V 15W | DC DC CONVERTER 500V 15W | DC DC CONVERTER 500V 15W |
| Series | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy | ULTRAVOLT / Advanced Energy |
| Packaging | Bulk | Bulk | Bulk | Bulk |
