12LRS685C

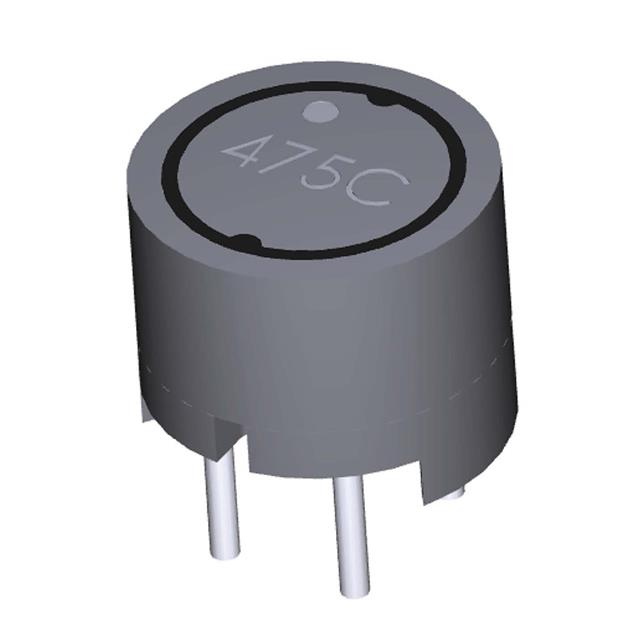

lmages are for reference only.12LRS685C
FIXED IND 6.8MH 150MA 15 OHM TH
DatasheetRadial, Vertical Cylinder, 4 Leads
36,248 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 mH Shielded Wirewound Inductor 150 mA 15Ohm Max Radial, Vertical Cylinder, 4 Leads
12LRS685C
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | 1200LRS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6.8 mH |
| Tolerance | ±15% |
| Current Rating (Amps) | 150 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 15Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads |
| Supplier Device Package | - |
| Size / Dimension | 0.413" Dia (10.50mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Base Product Number | 12LRS |
| Product Attribute |  |
|
|
 |
| Part Number | 12LRS682C | 12LRS682C | 12LRS683C | 12LRS684C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 6.8UH 4.7A 20 MOHM TH | FIXED IND 6.8UH 4.7A 20 MOHM TH | FIXED IND 68UH 1.6A 160 MOHM TH | FIXED IND 680UH 500MA 1.65OHM TH |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
