1393276-7
lmages are for reference only.1393276-7
RELAY AUTO SPST-NO 70A 24V
Datasheet-
47,022 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1393276-7
| Category | Relays - Automotive Relays - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23071 |
| Packaging | Bulk |
| RoHS Status | |
| Coil Type | Non Latching |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 70 A |
| Switching Voltage | 24VDC - Nom |
| Must Operate Voltage | 14.1 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 4 ms |
| Release Time | 3 ms |
| Features | - |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Coil Power | 2.5W |
| Coil Resistance | 234 Ohms |
| Base Product Number | - |
| Coil Current | 103 mA |
| Product Attribute | |
 |
|
 |

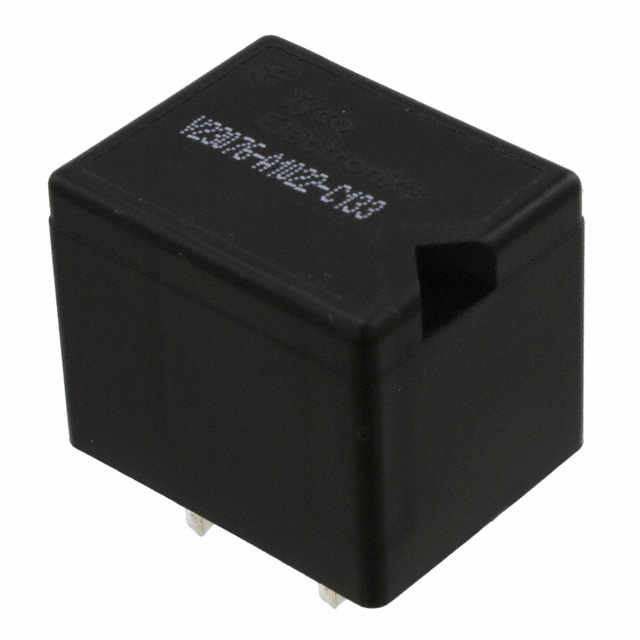

| Part Number | 1393276-7 | 1393277-4 | 1393277-4 | 1393277-6 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | RELAY AUTO SPST-NO 70A 24V | RELAY AUTOMOTIVE SPDT 45A 12V | RELAY AUTOMOTIVE SPDT 45A 12V | RELAY AUTOMOTIVE SPDT 40A 12V |
| Series | V23071 | V23076 | V23076 | V23076 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
