15 PSI-D-HGRADE-MV
lmages are for reference only.15 PSI-D-HGRADE-MV
SENSOR 15PSID 0.19" .09V
Datasheet6-SIP Module
26,417 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.19" (4.83mm) Tube, Dual 0 mV ~ 90 mV (12V) 6-SIP Module
15 PSI-D-HGRADE-MV
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | AXCX |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | D-HGRADE-MV |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 90 mV (12V) |
| Accuracy | ±0.5% |
| Voltage - Supply | 16V |
| Port Size | Male - 0.19" (4.83mm) Tube, Dual |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 60PSI (413.69kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

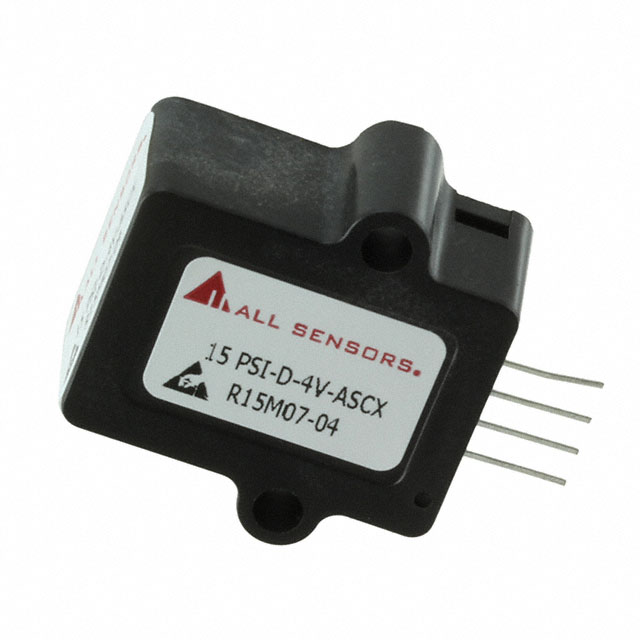

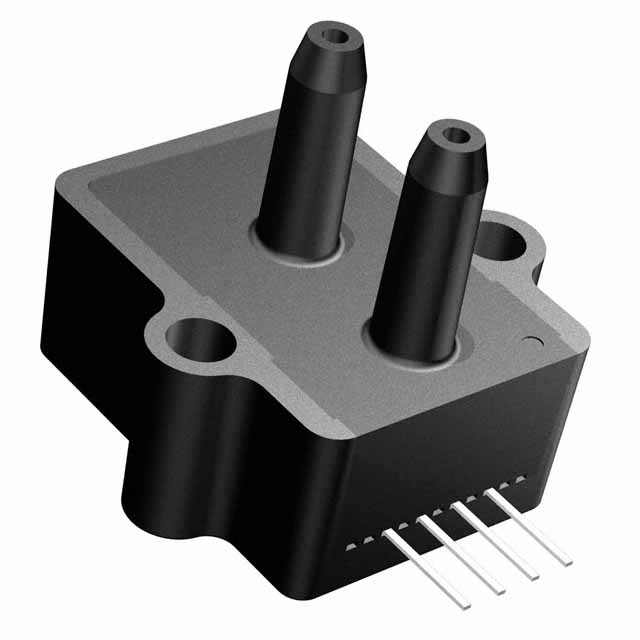

| Part Number | 15 PSI-D-HGRADE-MINI | 15 PSI-D-HGRADE-MV-ABD | 15 PSI-D-4V | 15 PSI-D-4V-ASCX |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | SENSOR 15PSID 0.18" .09V | SENSOR 15PSID 0.19" .09V | SENSOR 15PSID 0.19" 4.25V | SENSOR 15PSID 0.19" 4.75V 4SIP |
| Series | ACPC | AXCX | AXCA | ASCX |
| Packaging | Tube | Tube | Tube | Bulk |
