Product CatalogPart Number
159120-5002
Manufacturer
3MDescription
CONN HEADER R/A 20POS 2MM
Datasheet
DatasheetPackage
-
In Stock
67,256 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
159120-5002
159120-5002
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
Quick Inquiry
159120-5002
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | 3M |
| Series | 159 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.142" (3.61mm) |
| Contact Length - Post | 0.112" (2.84mm) |
| Overall Contact Length | - |
| Insulation Height | 0.241" (6.13mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Keying Slot |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1.25A |
| Voltage Rating | 150V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Applications | - |
| Base Product Number | 159120 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | 159120-2002 | 159120-6002 | 159122-6002 | 159126-2002 |
| Manufacturer | 3M | 3M | 3M | 3M |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

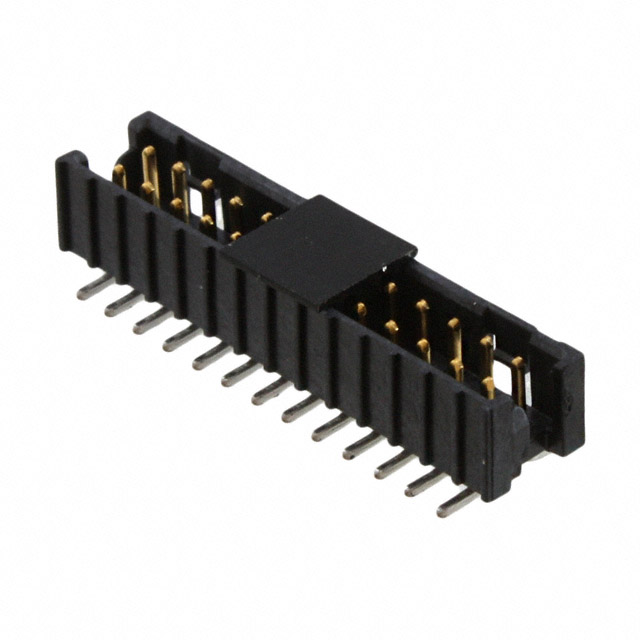

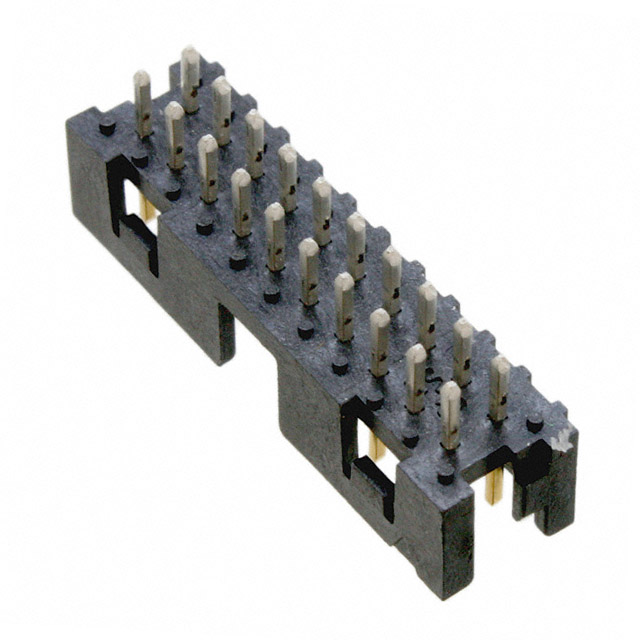

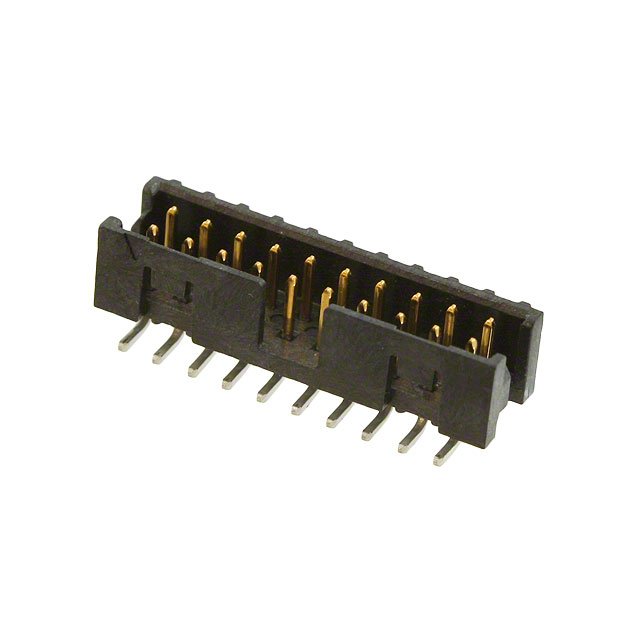

| Description | CONN HEADER SMD 20POS 2MM | CONN HEADER VERT 20POS 2MM | CONN HEADER VERT 22POS 2MM | CONN HEADER SMD 26POS 2MM |
| Series | 159 | 159 | 159 | 159 |
| Packaging | Tape & Reel (TR) | Tray | Tray | Tape & Reel (TR) |
