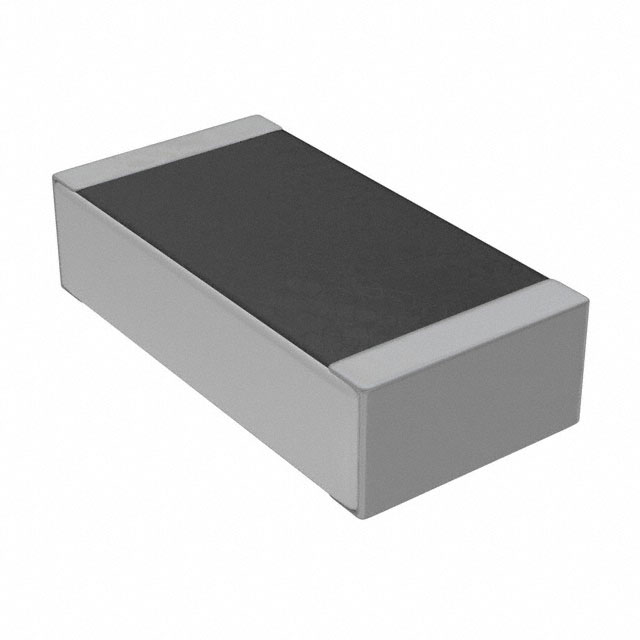

1676861-5
lmages are for reference only.1676861-5
CAP CER 1PF 100V NP0 1206
Datasheet1206 (3216 Metric)
57,378 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 pF ±5% 100V Ceramic Capacitor C0G, NP0 1206 (3216 Metric)
1676861-5
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TE Connectivity Passive Product |
| Series | TYC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Capacitance | 1 pF |
| Tolerance | ±5% |
| Voltage - Rated | 100V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low Dissipation Factor |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | - |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | 1676861 |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1676860-5 | 1676850-1 | 1676850-2 | 1676852-1 |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ||||

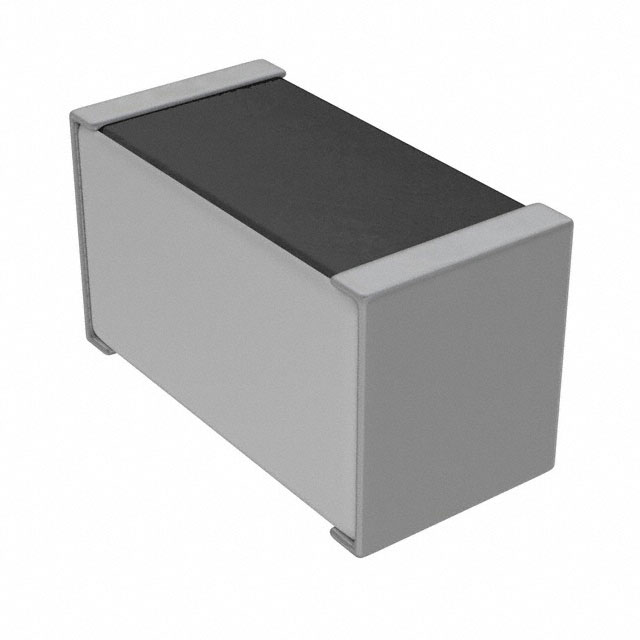

| Description | CAP CER 1PF 50V NP0 1206 | CAP CER 0.47PF 25V NP0 0402 | CAP CER 0.56PF 25V NP0 0402 | CAP CER 0.47PF 100V NP0 0402 |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
