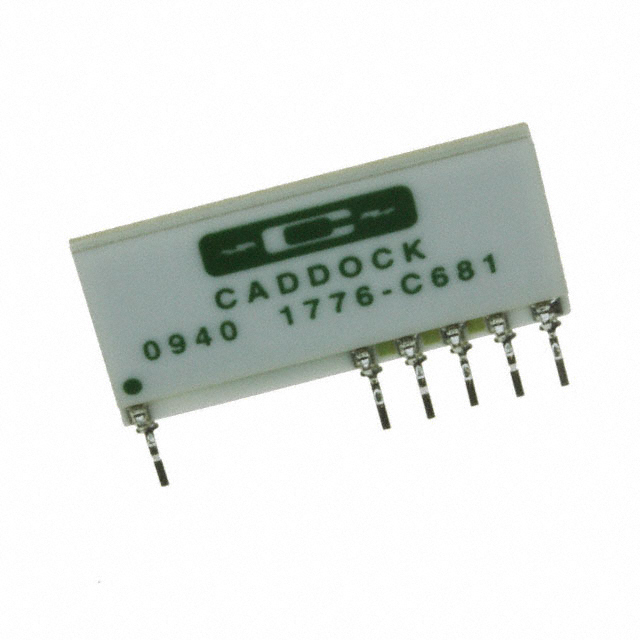

1776-C681
lmages are for reference only.1776-C681
RES NETWORK 5 RES MULT OHM 10SIP
Datasheet10-SIP, 6 Leads
35,673 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1k, 9k, 90k, 900k, 9M Ohm ±0.1% 62.5mW Power Per Element Decade Resistor 5 Resistor Network/Array ±30ppm/°C 10-SIP, 6 Leads
1776-C681
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | Caddock Electronics Inc. |
| Series | 1776 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Decade Resistor |
| Resistance (Ohms) | 1k, 9k, 90k, 900k, 9M |
| Tolerance | ±0.1% |
| Number of Resistors | 5 |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±10ppm/°C |
| Number of Pins | 6 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±30ppm/°C |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Through Hole |
| Package / Case | 10-SIP, 6 Leads |
| Supplier Device Package | - |
| Size / Dimension | 1.000" L x 0.110" W (25.40mm x 2.79mm) |
| Height - Seated (Max) | 0.550" (13.97mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1776-C68 | 1776-C6815 | 1776-C48 | 1776-C481 |
| Manufacturer | Caddock Electronics Inc. | Caddock Electronics Inc. | Caddock Electronics Inc. | Caddock Electronics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES NETWORK 5 RES MULT OHM 10SIP | RES NETWORK 5 RES MULT OHM 10SIP | RES NETWORK 5 RES MULT OHM 12SIP | RES NETWORK 5 RES MULT OHM 12SIP |
| Series | 1776 | 1776 | 1776 | 1776 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
