1825152-1
lmages are for reference only.1825152-1
SWITCH SLIDE DIP SPST 0.4VA 20V
Datasheet-
57,017 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 0.4VA 20VAC/DC
1825152-1
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | SSV |
| Packaging | Tube |
| RoHS Status | |
| Circuit | SPST |
| Number of Positions | 2 |
| Current Rating (Amps) | 0.4VA |
| Voltage Rating | 20VAC/DC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.197" (5.00mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | - |
| Operating Temperature | -30°C ~ 85°C |
| Body Material | Polyphenylene Sulfide (PPS) |
| Length | 0.298" (7.58mm) |
| Mechanical Life | 1,000 Cycles |
| Electrical Life | 1,000 Cycles |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

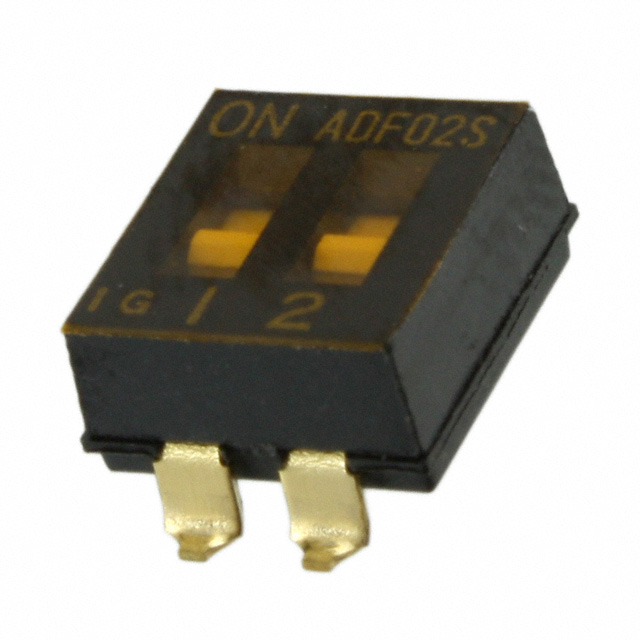

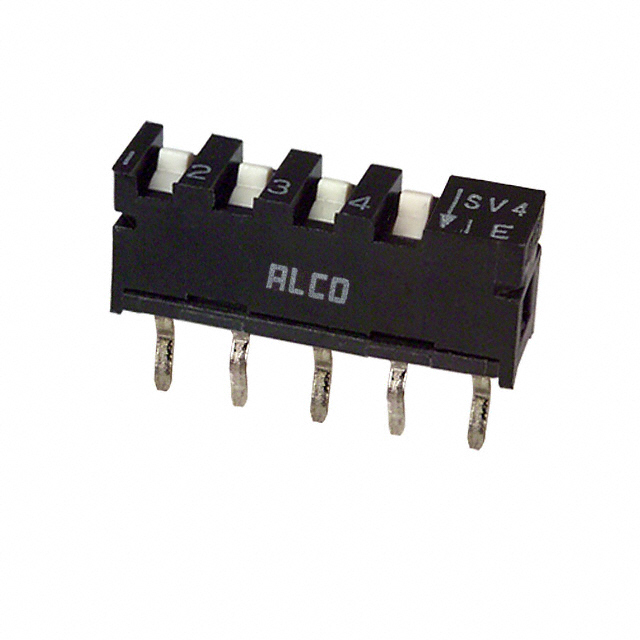

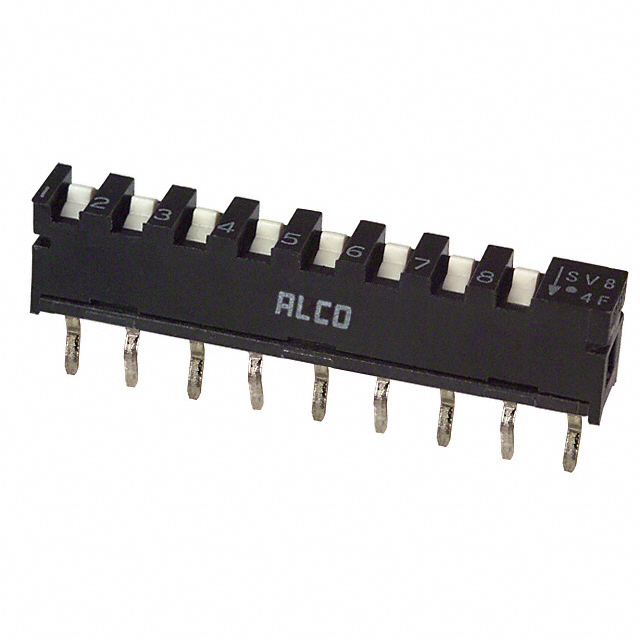

| Part Number | 1825152-2 | 1825152-4 | 1825153-2 | 1825059-5 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | |||
| Description | SWITCH SLIDE DIP SPST 0.4VA 20V | SWITCH SLIDE DIP SPST 0.4VA 20V | SWITCH SLIDE DIP SPST 0.4VA 20V | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | SSV | SSV | SSH | ADF |
| Packaging | Tube | Tube | Tube | Tube |
