1825284-2
lmages are for reference only.1825284-2
SWITCH SLIDE DIP SPST 0.4VA 20V
Datasheet-
36,171 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 5 Position Through Hole Slide (Standard) Actuator 0.4VA 20VAC/DC
1825284-2
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | ATT |
| Packaging | Tube |
| RoHS Status | Not applicable |
| Circuit | SPST |
| Number of Positions | 5 |
| Current Rating (Amps) | 0.4VA |
| Voltage Rating | 20VAC/DC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.225" (5.72mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -30°C ~ 85°C |
| Body Material | Polybutylene Terephthalate (PBT) |
| Length | 1.076" (27.34mm) |
| Mechanical Life | 5,000 Cycles |
| Electrical Life | 5,000 Cycles |
| Base Product Number | 1825284 |
| Product Attribute | |
 |
 |
 |

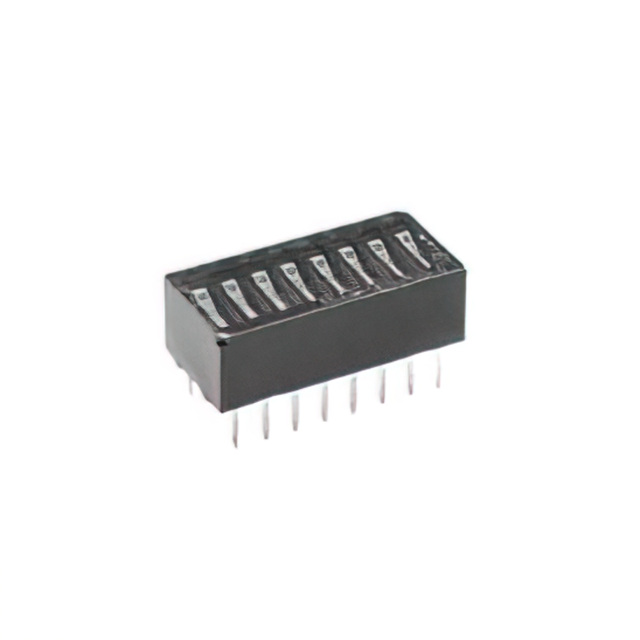

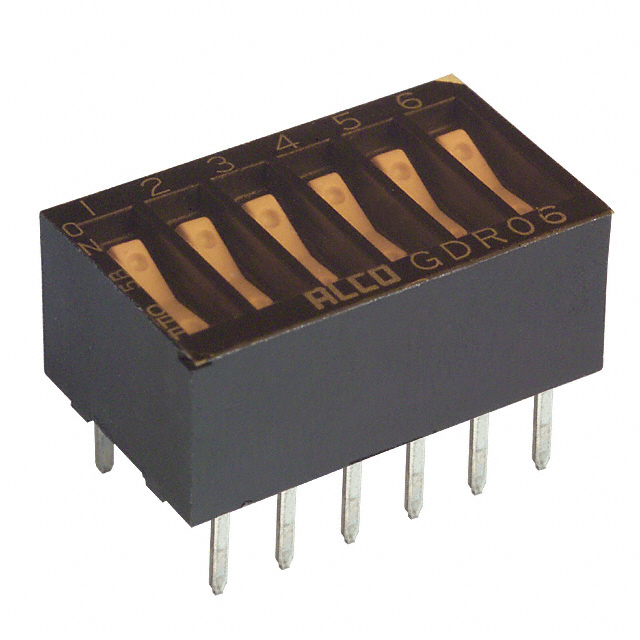

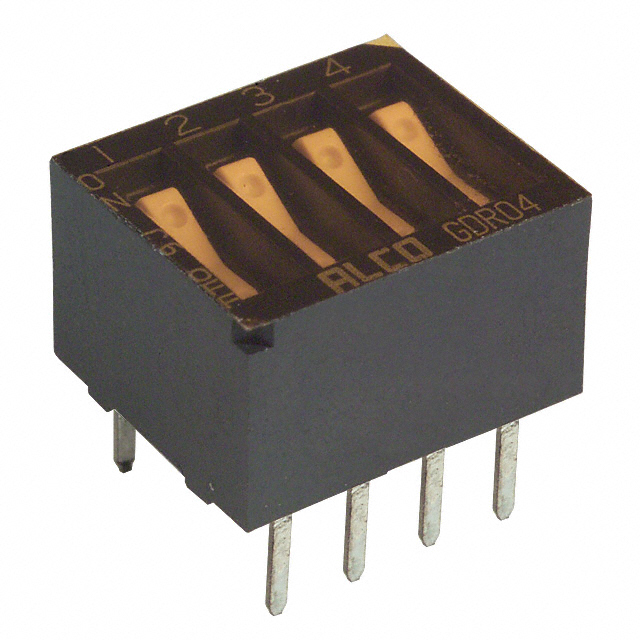

| Part Number | 1825284-3 | 1825286-3 | 1825286-4 | 1825286-5 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | Not applicable | Not applicable | Not applicable | Not applicable |
| Description | SWITCH SLIDE DIP SPST 0.4VA 20V | SW ROCKER DIP SPST 0.025A 24V | SW ROCKER DIP SPST 0.025A 24V | SW ROCKER DIP SPST 0.025A 24V |
| Series | ATT | GDR | GDR | GDR |
| Packaging | Bulk | Tube | Tube | Tube |
