185682J100RAA-F
lmages are for reference only.185682J100RAA-F
CAP FILM 6800PF 5% 100VDC RADIAL
DatasheetRadial
64,564 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6800 pF Film Capacitor 63V 100V Polyester, Metallized Radial
185682J100RAA-F
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 185 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 6800 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 63V |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Metallized |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.283" L x 0.098" W (7.20mm x 2.50mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

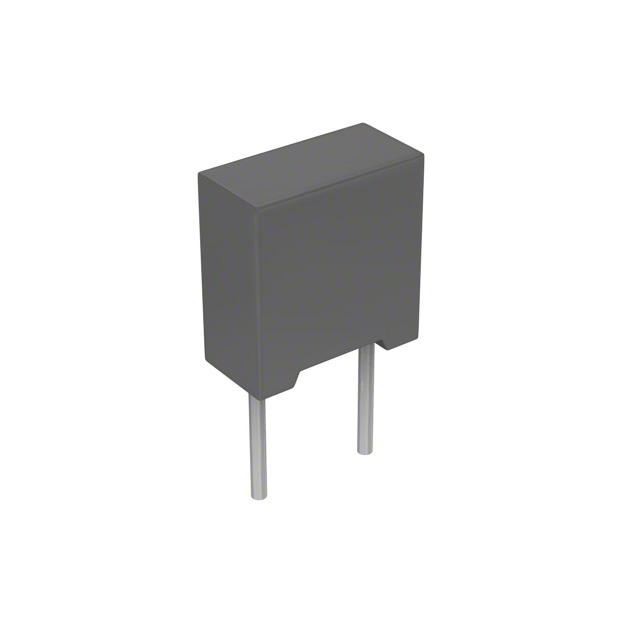

| Part Number | 185682J100RAB-F | 185682J250RAA-F | 185682J250RAB-F | 185682J400RCA-F |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 6800PF 5% 100VDC RADIAL | CAP FILM 6800PF 5% 250VDC RADIAL | CAP FILM 6800PF 5% 250VDC RADIAL | CAP FILM 6800PF 5% 400VDC RADIAL |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
