1D14A_050505DS3UP
lmages are for reference only.1D14A_050505DS3UP
ISOLATED MODULE DC DC CONVERTERS
Datasheet14-DIP Module, 7 Leads
37,355 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V 5V 100mA, 99mA 4.5V - 5.5V Input
1D14A_050505DS3UP
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | GAPTEC Electronic |
| Series | 1D14A_DS3UP (1W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 99mA |
| Power (Watts) | 995 mW |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 70% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module, 7 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |

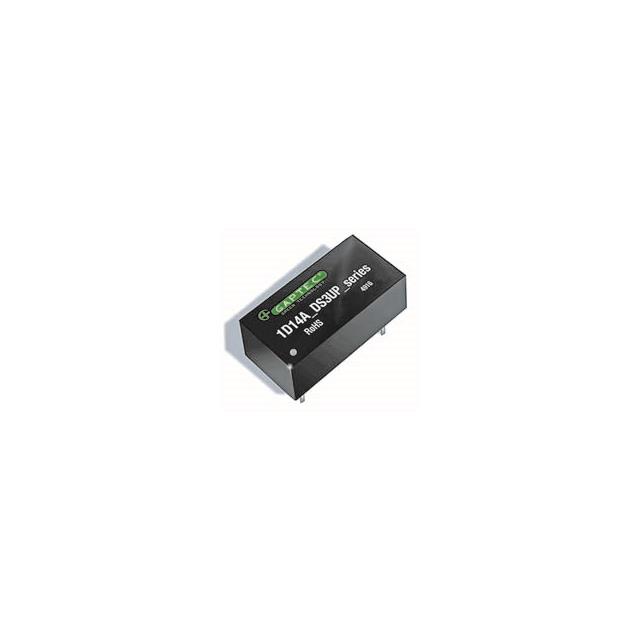

| Part Number | 1D14A_050503DS3UP | 1D14A_050509DS3UP | 1D14A_050512DS3UP | 1D14A_050515DS3UP |
| Manufacturer | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS |
| Series | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| Packaging | Tube | Tube | Tube | Tube |
