1D8E_0505S1U

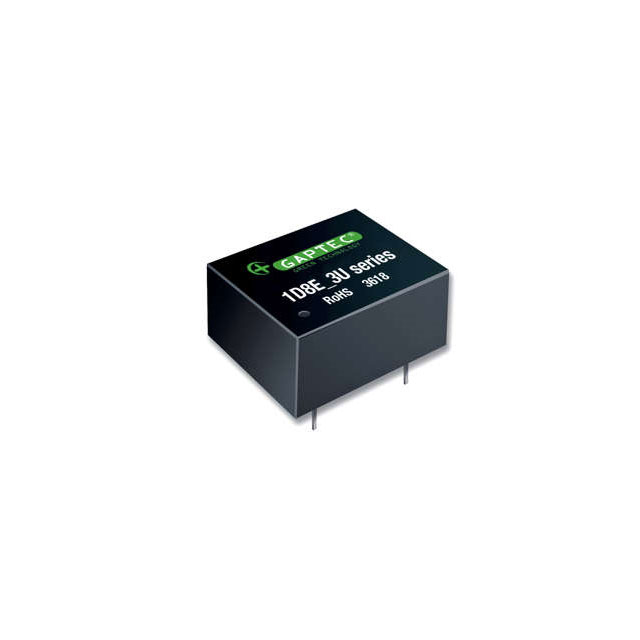

lmages are for reference only.1D8E_0505S1U
ISOLATED MODULE DC DC CONVERTERS
Datasheet8-DIP Module, 4 Leads
25,340 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
1D8E_0505S1U
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | GAPTEC Electronic |
| Series | 1D8E_1U (1W) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 81% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 4 Leads |
| Size / Dimension | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 60950-1 |
| Base Product Number | - |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
 |
|
| Part Number | 1D8E_0505S3U | 1D8E_0303S1U | 1D8E_0305S1U | 1D8E_0305S1U |
| Manufacturer | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS | ISOLATED MODULE DC DC CONVERTERS |
| Series | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic | GAPTEC Electronic |
| Packaging | Tube | Tube | Tube | Tube |
