1N4745A BK TIN/LEAD

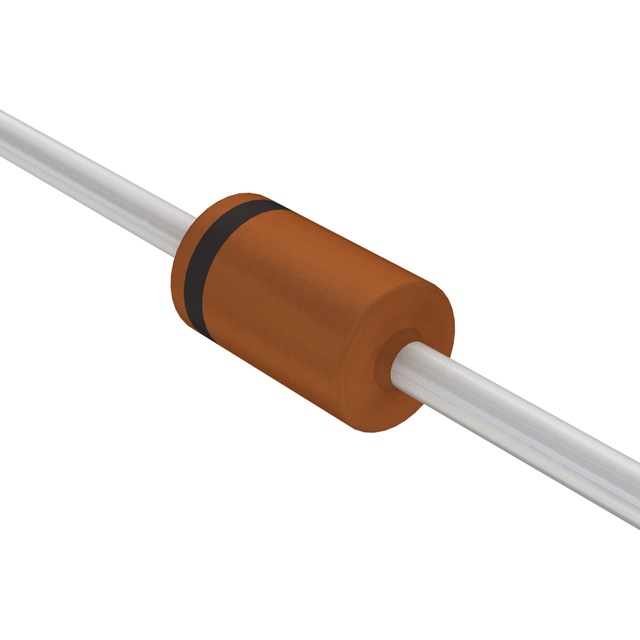

lmages are for reference only.1N4745A BK TIN/LEAD
DIODE ZENER 16V 1W DO41
DatasheetDO-204AL, DO-41, Axial
13,647 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 16 V 1 W ±5% Through Hole DO-41
1N4745A BK TIN/LEAD
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Voltage - Zener (Nom) (Vz) | 16 V |
| Tolerance | ±5% |
| Power - Max | 1 W |
| Impedance (Max) (Zzt) | 16 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 12.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Operating Temperature | -65°C ~ 200°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | 1N4745A B0G | 1N4700 | 1N4700 BK PBFREE | 1N4700 TR PBFREE |
| Manufacturer | Taiwan Semiconductor Corporation | Microchip Technology | Central Semiconductor Corp | Central Semiconductor Corp |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE ZENER 16V 1W DO204AL | DIODE ZENER 13V 500MW DO204AH | DIODE ZENER 13V 500MW DO35 | DIODE ZENER 13V 500MW DO35 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
