1N5222B-TAP

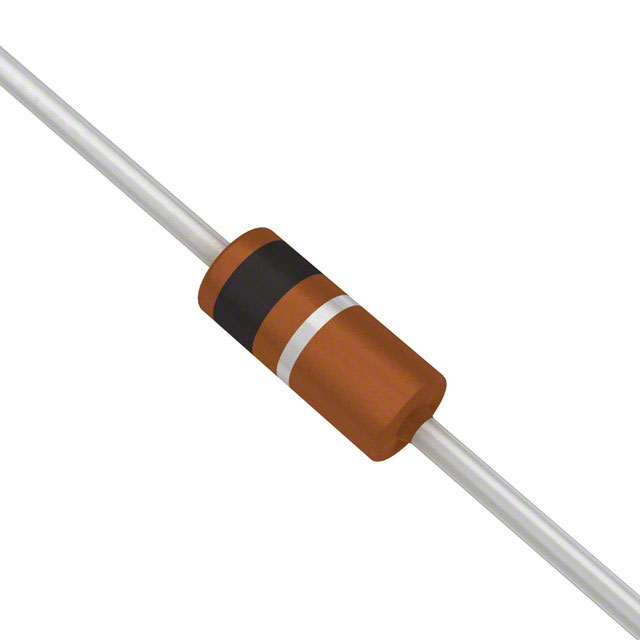

lmages are for reference only.1N5222B-TAP
DIODE ZENER 2.5V 500MW DO204AH
DatasheetDO-204AH, DO-35, Axial
60,017 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 2.5 V 500 mW ±5% Through Hole DO-204AH (DO-35)
1N5222B-TAP
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 2.5 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 30 Ohms |
| Current - Reverse Leakage @ Vr | 100 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA |
| Operating Temperature | 175°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-204AH (DO-35) |
| Base Product Number | 1N5222 |
| Product Attribute |  |
|
 |
|
| Part Number | 1N5222B-1 | 1N5222B-G | 1N5222B-T | 1N5222B-T |
| Manufacturer | Microchip Technology | Comchip Technology | Diodes Incorporated | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE ZENER 2.5V 500MW DO204AH | DIODE ZENER 2.5V 500MW DO35 | DIODE ZENER 2.5V 500MW DO35 | DIODE ZENER 2.5V 500MW DO204AH |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Box (TB) | Tape & Reel (TR) | Tape & Reel (TR) |
